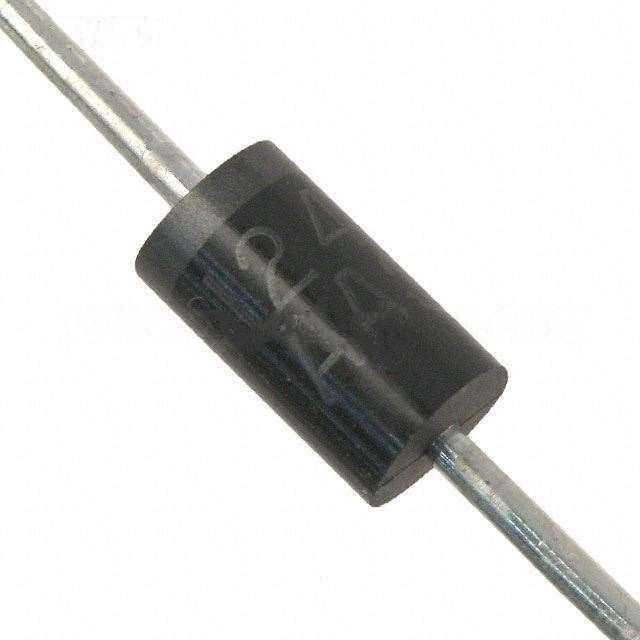

| Manufacturer Part Number: | 1N5821 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 10260 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 30V 3A DO201AD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1N5821 Datasheet |
| Internal Part Number | 898-1N5821 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 30V | |
| Current - Average Rectified (Io) | 3A | |
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 3A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 500µA @ 30V | |
| Capacitance @ Vr, F | 190pF @ 4V, 1MHz | |
| Mounting Type | Through Hole | |
| Package / Case | DO-201AD, Axial | |
| Supplier Device Package | DO-201AD | |
| Operating Temperature - Junction | -65°C ~ 125°C | |
| Standard Package | 1,250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1N5821 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1N5821 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of 1N5821 is new and unused, you can buy 1N5821 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1N5821.
