Manufacturer Part Number: | 1N824-E3 |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Diodes - Zener - Single |
Available Quantity: | 9282 Pieces |
Unit Price: | Quote by Email |

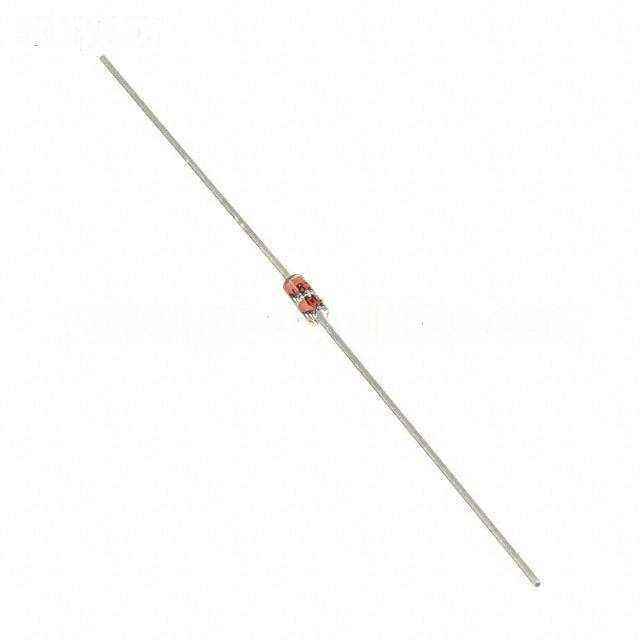

Description: | Zener Diode 6.2V 500mW ±5% Through Hole DO-35 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 1N824-E3 Datasheet |
Internal Part Number | 898-1N824-E3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Standard Package | 2,500 | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Zener - Single | |
Manufacturer | Microsemi Corporation | |
Series | Military, MIL-PRF-19500/159 | |
Packaging | Bulk | |
Part Status | Active | |
Voltage - Zener (Nom) (Vz) | 6.2V | |
Tolerance | ±5% | |
Power - Max | 500mW | |
Impedance (Max) (Zzt) | 15 Ohm | |
Current - Reverse Leakage @ Vr | 2µA @ 3V | |
Voltage - Forward (Vf) (Max) @ If | - | |
Operating Temperature | -55°C ~ 175°C | |
Mounting Type | Through Hole | |
Package / Case | DO-204AH, DO-35, Axial | |
Supplier Device Package | DO-35 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 1N824-E3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
1N824-E3 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of 1N824-E3 is new and unused, you can buy 1N824-E3 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1N824-E3.
