| Manufacturer Part Number: | 2SD1060S-JKH-1E |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS NPN 5A 50V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2SD1060S-JKH-1E Datasheet |
| Internal Part Number | 898-2SD1060S-JKH-1E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 50 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Transistor Type | - | |
| Current - Collector (Ic) (Max) | - | |
| Voltage - Collector Emitter Breakdown (Max) | - | |
| Vce Saturation (Max) @ Ib, Ic | - | |
| Current - Collector Cutoff (Max) | - | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | |
| Power - Max | - | |
| Frequency - Transition | - | |
| Mounting Type | Through Hole | |

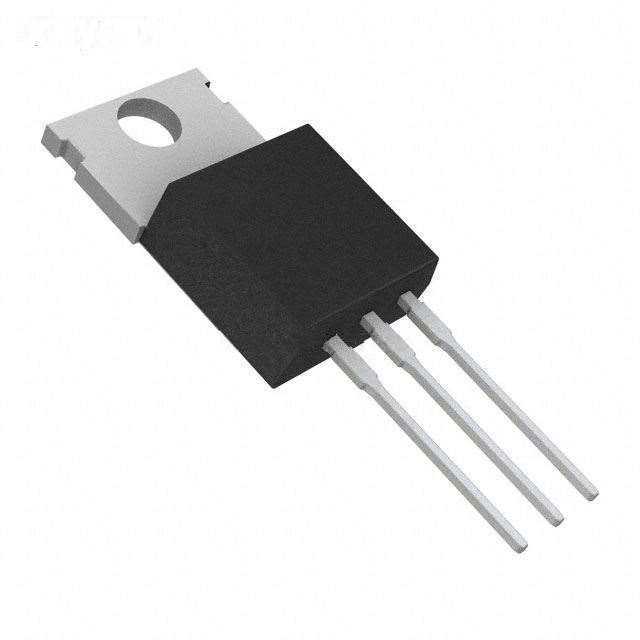

| Package / Case | TO-220-3 | |
| Supplier Device Package | TO-220-3 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2SD1060S-JKH-1E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2SD1060S-JKH-1E is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of 2SD1060S-JKH-1E is new and unused, you can buy 2SD1060S-JKH-1E ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2SD1060S-JKH-1E.
