Manufacturer Part Number: | 5962-8761203VDA |
---|---|
Manufacturer: | T-I |
Product Category: | Logic - Gates and Inverters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | NOR Gate IC 4 Channel 14-CFP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 5962-8761203VDA Datasheet |
Internal Part Number | 898-5962-8761203VDA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Gates and Inverters | |
Manufacturer | T I | |
Series | - | |
Packaging | Tube | |
Part Status | Obsolete | |
Logic Type | NOR Gate | |
Number of Circuits | 4 | |
Number of Inputs | 2 | |
Features | - | |
Voltage - Supply | 1.5 V ~ 5.5 V | |
Current - Quiescent (Max) | 4µA | |
Current - Output High, Low | 24mA, 24mA | |
Logic Level - Low | 0.3 V ~ 1.65 V | |
Logic Level - High | 1.2 V ~ 3.85 V | |
Max Propagation Delay @ V, Max CL | 11.5ns @ 5V, 50pF | |
Operating Temperature | -55°C ~ 125°C | |
Mounting Type | Through Hole | |

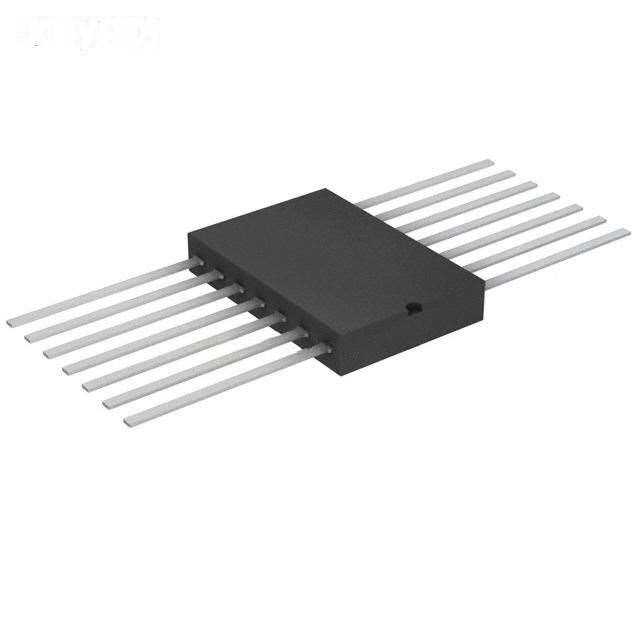

Supplier Device Package | 14-CFP | |
Package / Case | 14-CFP | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 5962-8761203VDA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
5962-8761203VDA is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of 5962-8761203VDA is new and unused, you can buy 5962-8761203VDA T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5962-8761203VDA.
