| Manufacturer Part Number: | 70TPS12 |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Thyristors - SCRs |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SCR 1200V 75A Standard Recovery Through Hole SUPER-247 (TO-274AA) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 70TPS12 Datasheet |
| Internal Part Number | 898-70TPS12 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Thyristors - SCRs | |
| Manufacturer | Vishay Semiconductor Diodes Division | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Voltage - Off State | 1200V | |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5V | |
| Current - Gate Trigger (Igt) (Max) | 100mA | |
| Voltage - On State (Vtm) (Max) | 1.4V | |
| Current - On State (It (AV)) (Max) | 70A | |
| Current - On State (It (RMS)) (Max) | 75A | |
| Current - Hold (Ih) (Max) | 200mA | |
| Current - Off State (Max) | 1mA | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1400A @ 50Hz | |
| SCR Type | Standard Recovery | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Through Hole | |
| Package / Case | TO-274AA | |

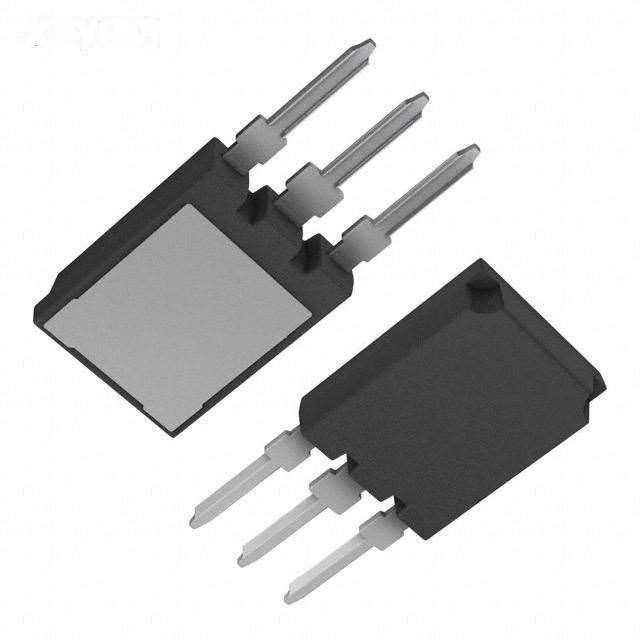

| Supplier Device Package | SUPER-247 (TO-274AA) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 70TPS12 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
70TPS12 is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of 70TPS12 is new and unused, you can buy 70TPS12 Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 70TPS12.
