| Manufacturer Part Number: | ACPL-C79B-500E |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Isolation Amplifier 1 Circuit Differential 8-SO Stretched |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ACPL-C79B-500E Datasheet |
| Internal Part Number | 898-ACPL-C79B-500E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | IC Upgrade 16/Oct/2015 Mult Device Design Changes 10/Nov/2015 Molding Chg 08/Feb/2016 | |
| PCN Packaging | Multiple Devices Marking/Labeling 07/Aug/2013 Marking/Labeling Revision B 14/Jan/2014 | |
| Online Catalog | Isolation | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Amplifier Type | Isolation | |
| Number of Circuits | 1 | |
| Output Type | Differential | |
| Slew Rate | - | |
| Gain Bandwidth Product | - | |
| -3db Bandwidth | 200kHz | |
| Current - Input Bias | 100nA | |
| Voltage - Input Offset | 600µV | |
| Current - Supply | 13mA | |
| Current - Output / Channel | 11mA | |
| Voltage - Supply, Single/Dual (±) | 4.5 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 105°C | |
| Mounting Type | Surface Mount | |

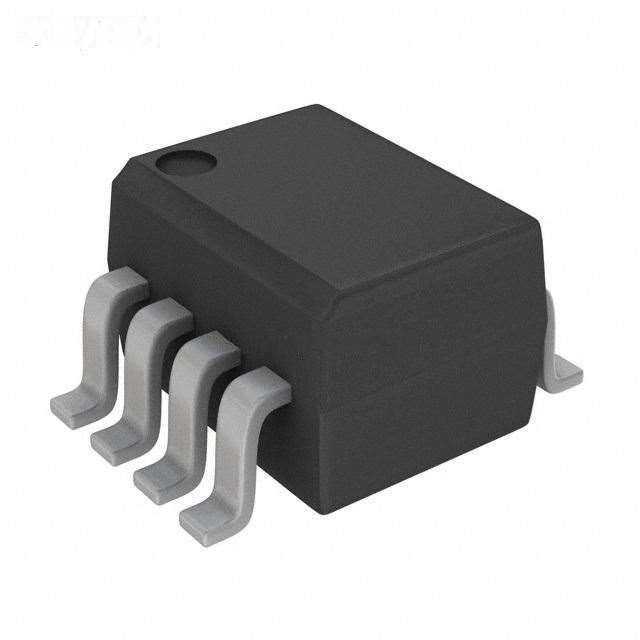

| Package / Case | 8-SOIC (0.268", 6.81mm Width) | |
| Supplier Device Package | 8-SO Stretched | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ACPL-C79B-500E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ACPL-C79B-500E is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ACPL-C79B-500E is new and unused, you can buy ACPL-C79B-500E Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACPL-C79B-500E.
