| Manufacturer Part Number: | ADP5071AREZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9054 Pieces |
| Unit Price: | Quote by Email |
| Description: | Boost, SEPIC Switching Regulator IC Positive and Negative (Dual Rail) Adjustable 0.8V, 1.6V 2 Output 1.2A, 2A 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADP5071AREZ Datasheet |
| Internal Part Number | 898-ADP5071AREZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Ferrite Beads Demystified | |
| Featured Product | ADP5070 and ADP5071 DC-to-DC Switching Regulators | |
| Online Catalog | Multi-Topology | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Function | Step-Up, Step-Up/Step-Down | |
| Output Configuration | Positive and Negative (Dual Rail) | |
| Topology | Boost, SEPIC | |
| Output Type | Adjustable | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 2.85V | |
| Voltage - Input (Max) | 15V | |
| Voltage - Output (Min/Fixed) | 0.8V, 1.6V | |
| Voltage - Output (Max) | ±39V | |
| Current - Output | 1.2A, 2A | |
| Frequency - Switching | 1.2MHz, 2.4MHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

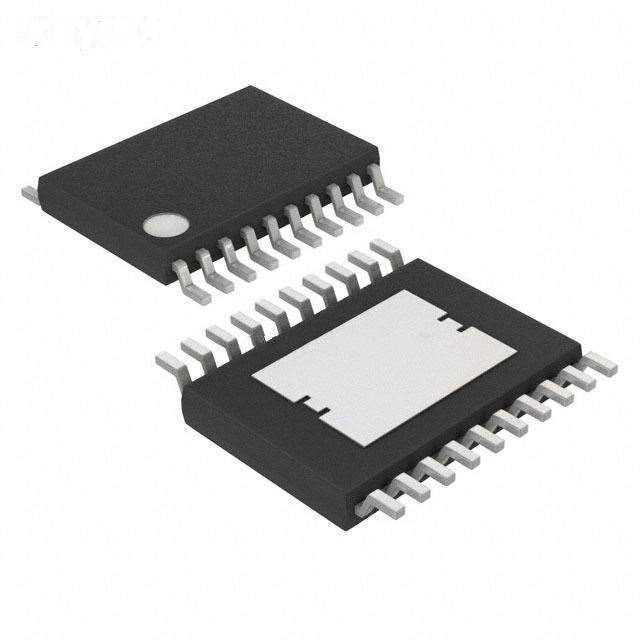

| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | |
| Supplier Device Package | 20-TSSOP-EP | |
| Standard Package | 75 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADP5071AREZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADP5071AREZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADP5071AREZ is new and unused, you can buy ADP5071AREZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADP5071AREZ.
