| Manufacturer Part Number: | AH9280Z4-G1 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver CMOS, Power MOSFET On/Off TO-94 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AH9280Z4-G1 Datasheet |
| Internal Part Number | 898-AH9280Z4-G1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | Brushless DC (BLDC) | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Low Side (2) | |
| Interface | On/Off | |
| Technology | CMOS, Power MOSFET | |
| Step Resolution | - | |
| Applications | Fan Motor Driver | |
| Current - Output | 600mA | |
| Voltage - Supply | 2.5 V ~ 16 V | |
| Voltage - Load | 2.5 V ~ 16 V | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Mounting Type | Through Hole | |
| Package / Case | 4-SIP | |

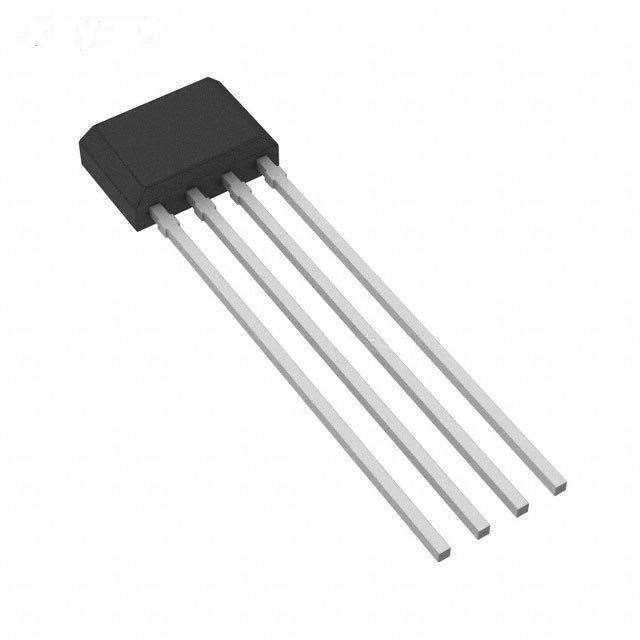

| Supplier Device Package | TO-94 | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AH9280Z4-G1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AH9280Z4-G1 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AH9280Z4-G1 is new and unused, you can buy AH9280Z4-G1 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AH9280Z4-G1.
