| Manufacturer Part Number: | AP1507-D5L-U |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 1.23V 1 Output 3A TO-252-6, DPak (5 Leads + Tab) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AP1507-D5L-U Datasheet |
| Internal Part Number | 898-AP1507-D5L-U | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 22V | |
| Voltage - Output (Min/Fixed) | 1.23V | |
| Voltage - Output (Max) | 18V | |
| Current - Output | 3A | |
| Frequency - Switching | 150kHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -20°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

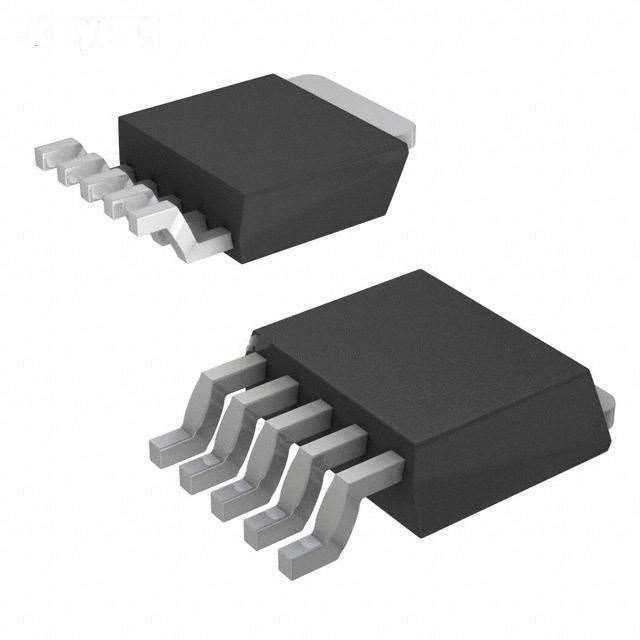

| Package / Case | TO-252-6, DPak (5 Leads + Tab) | |
| Supplier Device Package | TO-252-5 | |
| Standard Package | 80 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AP1507-D5L-U | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AP1507-D5L-U is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AP1507-D5L-U is new and unused, you can buy AP1507-D5L-U Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP1507-D5L-U.
