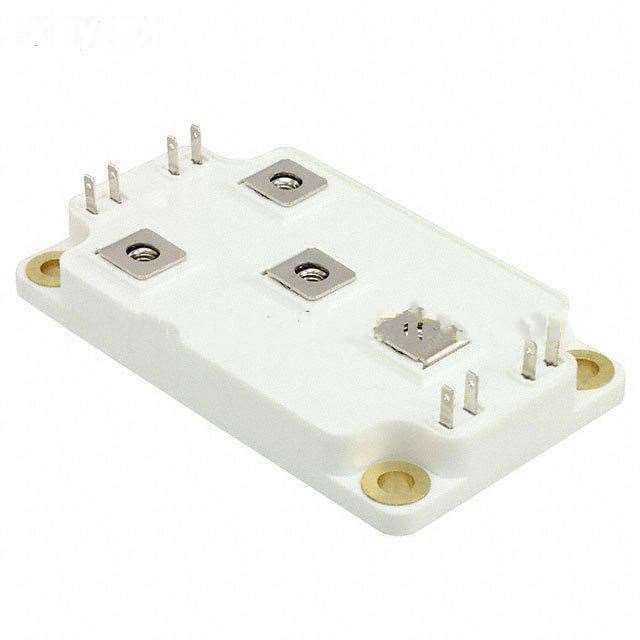

| Manufacturer Part Number: | APTGLQ200HR120G |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module Trench Field Stop 1200V 300A 1000W Through Hole SP6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTGLQ200HR120G Datasheet |
| Internal Part Number | 898-APTGLQ200HR120G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | APT Phase Leg Module Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Configuration | * | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 300A | |
| Power - Max | 1000W | |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 160A | |
| Current - Collector Cutoff (Max) | 200µA | |
| Input Capacitance (Cies) @ Vce | 9.2nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Through Hole | |
| Package / Case | SP6 | |
| Supplier Device Package | SP6 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTGLQ200HR120G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTGLQ200HR120G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGLQ200HR120G is new and unused, you can buy APTGLQ200HR120G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGLQ200HR120G.
