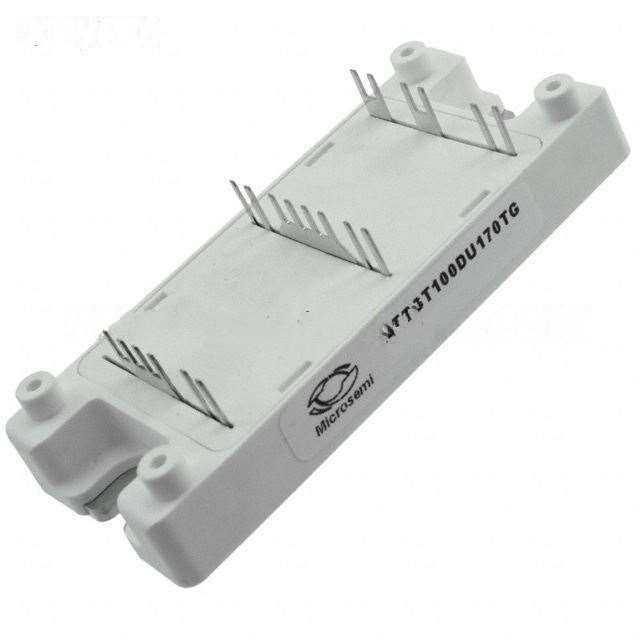

| Manufacturer Part Number: | APTGT100DU170TG |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module Trench Field Stop Dual, Common Source 1700V 150A 560W Chassis Mount SP4 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTGT100DU170TG Datasheet |
| Internal Part Number | 898-APTGT100DU170TG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | APT Dual Common Source Module Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Configuration | Dual, Common Source | |
| Voltage - Collector Emitter Breakdown (Max) | 1700V | |
| Current - Collector (Ic) (Max) | 150A | |
| Power - Max | 560W | |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 100A | |
| Current - Collector Cutoff (Max) | 250µA | |
| Input Capacitance (Cies) @ Vce | 9nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | Yes | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP4 | |
| Supplier Device Package | SP4 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTGT100DU170TG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTGT100DU170TG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGT100DU170TG is new and unused, you can buy APTGT100DU170TG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGT100DU170TG.
