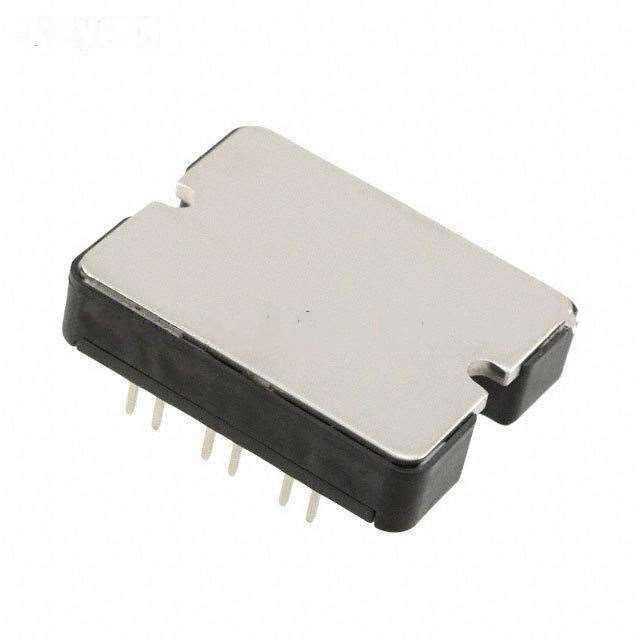

| Manufacturer Part Number: | APTGT150A60T1G |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module Trench Field Stop Half Bridge 600V 225A 480W Chassis Mount SP1 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTGT150A60T1G Datasheet |
| Internal Part Number | 898-APTGT150A60T1G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | APT Phase Leg Module Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Configuration | Half Bridge | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 225A | |
| Power - Max | 480W | |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 150A | |
| Current - Collector Cutoff (Max) | 250µA | |
| Input Capacitance (Cies) @ Vce | 9.2nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | Yes | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP1 | |
| Supplier Device Package | SP1 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTGT150A60T1G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTGT150A60T1G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGT150A60T1G is new and unused, you can buy APTGT150A60T1G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGT150A60T1G.
