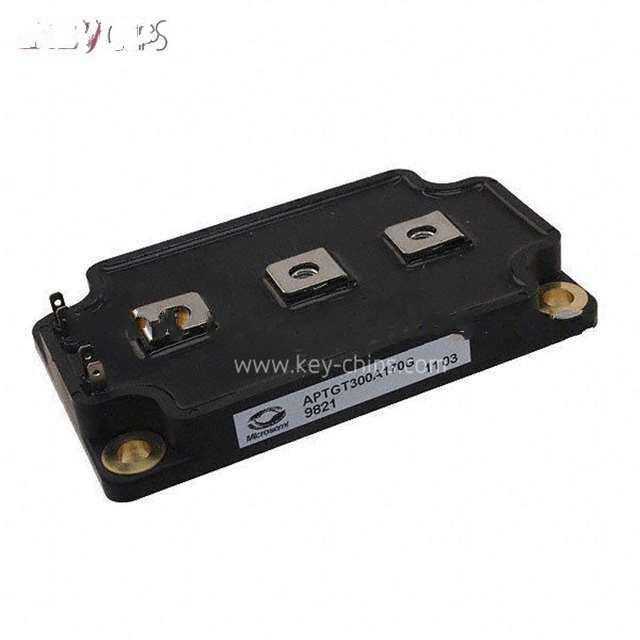

| Manufacturer Part Number: | APTGT300A170G |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9025 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module Trench Field Stop Half Bridge 1700V 400A 1660W Chassis Mount SP6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTGT300A170G Datasheet |
| Internal Part Number | 898-APTGT300A170G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | APT Phase Leg Module Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Configuration | Half Bridge | |
| Voltage - Collector Emitter Breakdown (Max) | 1700V | |
| Current - Collector (Ic) (Max) | 400A | |
| Power - Max | 1660W | |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 300A | |
| Current - Collector Cutoff (Max) | 750µA | |
| Input Capacitance (Cies) @ Vce | 26.5nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP6 | |
| Supplier Device Package | SP6 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTGT300A170G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTGT300A170G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGT300A170G is new and unused, you can buy APTGT300A170G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGT300A170G.
