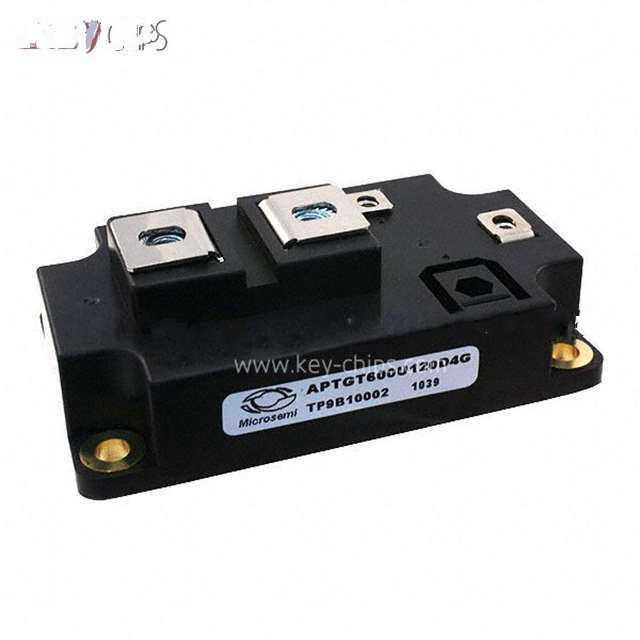

| Manufacturer Part Number: | APTGT600U120D4G |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module Trench Field Stop Single 1200V 900A 2500W Chassis Mount D4 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTGT600U120D4G Datasheet |
| Internal Part Number | 898-APTGT600U120D4G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | APT Single Switch Module Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Configuration | Single | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 900A | |
| Power - Max | 2500W | |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 600A | |
| Current - Collector Cutoff (Max) | 5mA | |
| Input Capacitance (Cies) @ Vce | 40nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Chassis Mount | |
| Package / Case | D4 | |
| Supplier Device Package | D4 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTGT600U120D4G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTGT600U120D4G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGT600U120D4G is new and unused, you can buy APTGT600U120D4G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGT600U120D4G.
