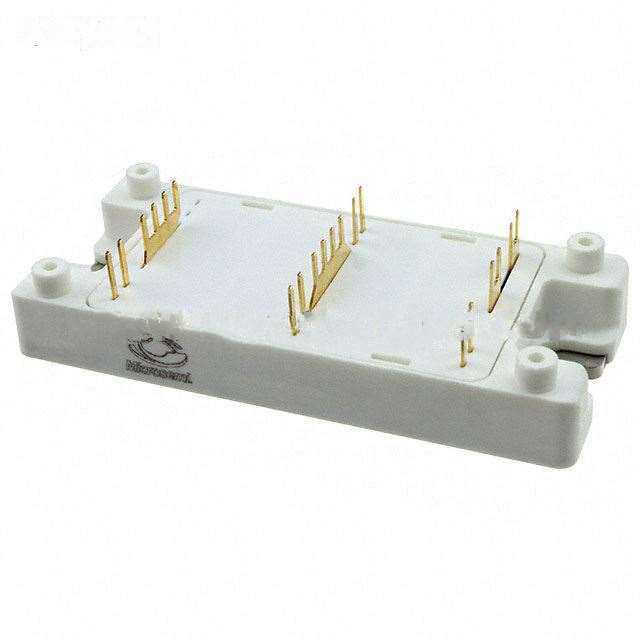

| Manufacturer Part Number: | APTGT75DA120TG |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module Trench Field Stop Single 1200V 110A 357W Chassis Mount SP4 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTGT75DA120TG Datasheet |
| Internal Part Number | 898-APTGT75DA120TG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | APT Boost Chopper Modules Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Configuration | Single | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 110A | |
| Power - Max | 357W | |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A | |
| Current - Collector Cutoff (Max) | 250µA | |
| Input Capacitance (Cies) @ Vce | 5.34nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | Yes | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP4 | |
| Supplier Device Package | SP4 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTGT75DA120TG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTGT75DA120TG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGT75DA120TG is new and unused, you can buy APTGT75DA120TG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGT75DA120TG.
