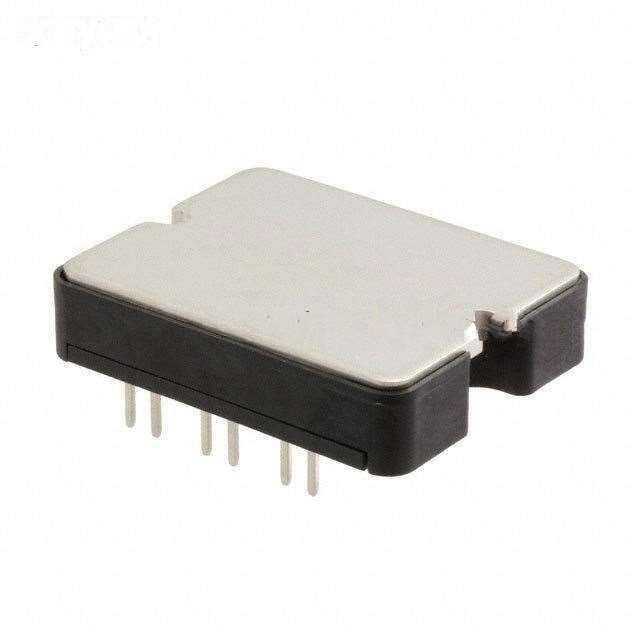

Manufacturer Part Number: | APTM120DA30CT1G |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 1200V 31A SP1 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | APTM120DA30CT1G Datasheet |
Internal Part Number | 898-APTM120DA30CT1G | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Microsemi Corporation | |
Series | POWER MOS 8™ | |
Packaging | Bulk | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 1200V (1.2kV) | |
Current - Continuous Drain (Id) @ 25°C | 31A | |
Rds On (Max) @ Id, Vgs | 360 mOhm @ 25A, 10V | |
Vgs(th) (Max) @ Id | 5V @ 2.5mA | |
Gate Charge (Qg) @ Vgs | 560nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 14560pF @ 25V | |
Power - Max | 657W | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Mounting Type | Chassis Mount | |
Package / Case | SP1 | |
Supplier Device Package | SP1 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | APTM120DA30CT1G | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
APTM120DA30CT1G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTM120DA30CT1G is new and unused, you can buy APTM120DA30CT1G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTM120DA30CT1G.
