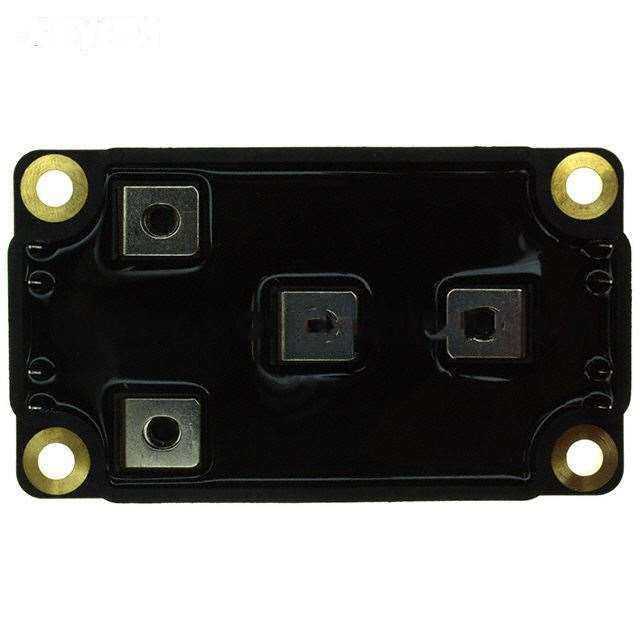

| Manufacturer Part Number: | APTM120H29FG |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9019 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 4N-CH 1200V 34A SP6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTM120H29FG Datasheet |
| Internal Part Number | 898-APTM120H29FG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Microsemi Corporation | |
| Series | POWER MOS 7® | |
| Packaging | Bulk | |
| Part Status | Active | |
| FET Type | 4 N-Channel (H-Bridge) | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) | |
| Current - Continuous Drain (Id) @ 25°C | 34A | |
| Rds On (Max) @ Id, Vgs | 348 mOhm @ 17A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 5mA | |
| Gate Charge (Qg) @ Vgs | 374nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 10300pF @ 25V | |
| Power - Max | 780W | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP6 | |
| Supplier Device Package | SP6 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTM120H29FG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTM120H29FG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTM120H29FG is new and unused, you can buy APTM120H29FG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTM120H29FG.
