| Manufacturer Part Number: | AS3683 |
|---|---|
| Manufacturer: | ams |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 6 Output DC DC Regulator Switched Capacitor (Charge Pump) 400mA (Flash) 24-QFN (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AS3683 Datasheet |
| Internal Part Number | 898-AS3683 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | ams | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Type | DC DC Regulator | |
| Topology | Switched Capacitor (Charge Pump) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 6 | |
| Voltage - Supply (Min) | 3V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | 5.3V | |
| Current - Output / Channel | 400mA (Flash) | |
| Frequency | 1MHz | |
| Dimming | - | |
| Applications | Backlight | |
| Operating Temperature | -30°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

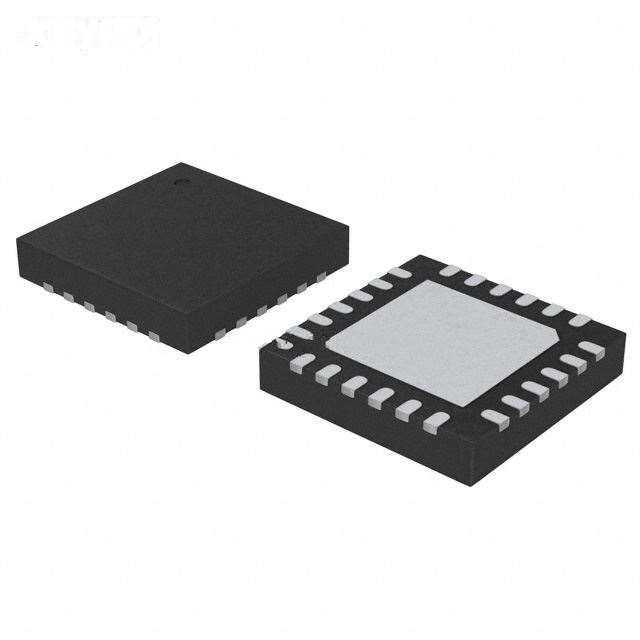

| Package / Case | 24-VFQFN Exposed Pad | |
| Supplier Device Package | 24-QFN (4x4) | |
| Standard Package | 75 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AS3683 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AS3683 is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS3683 is new and unused, you can buy AS3683 ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS3683.
