Manufacturer Part Number: | AT-42000-GP4 |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | Transistors - Bipolar (BJT) - RF |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF Transistor NPN 12V 80mA 9GHz 600mW Surface Mount Chip |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AT-42000-GP4 Datasheet |
Internal Part Number | 898-AT-42000-GP4 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 30/Jul/2014 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - Bipolar (BJT) - RF | |
Manufacturer | Broadcom Limited | |
Series | - | |
Packaging | Tray | |
Part Status | Obsolete | |
Transistor Type | NPN | |
Voltage - Collector Emitter Breakdown (Max) | 12V | |
Frequency - Transition | 9GHz | |
Noise Figure (dB Typ @ f) | 1.9dB ~ 3dB @ 2GHz ~ 4GHz | |
Gain | 10.5dB ~ 14dB | |
Power - Max | 600mW | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 35mA, 8V | |
Current - Collector (Ic) (Max) | 80mA | |
Mounting Type | Surface Mount | |
Package / Case | Die | |
Supplier Device Package | Chip | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AT-42000-GP4 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |

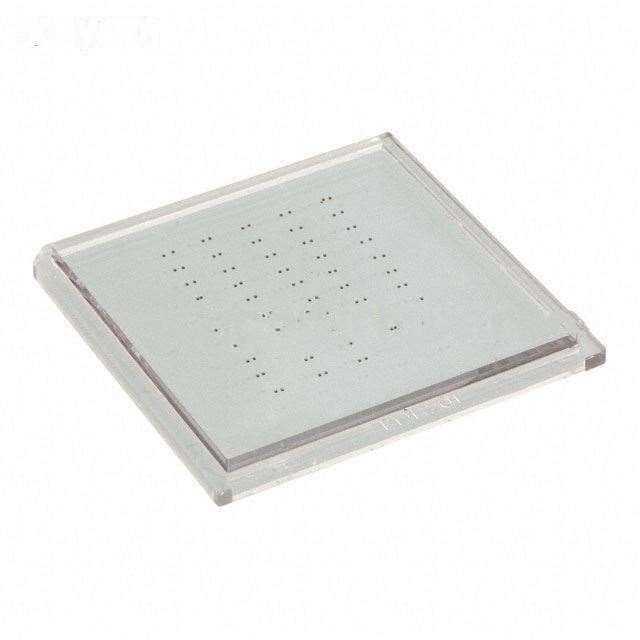

Picture / Image / Photo | Send via email |
AT-42000-GP4 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of AT-42000-GP4 is new and unused, you can buy AT-42000-GP4 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AT-42000-GP4.
