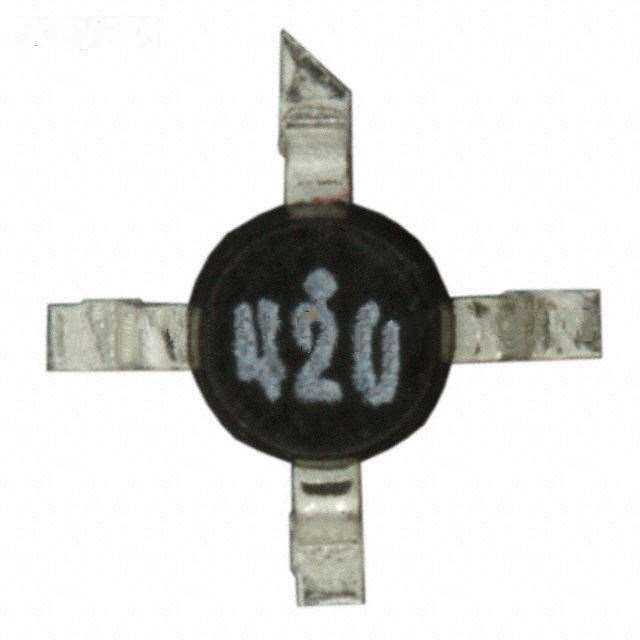

| Manufacturer Part Number: | AT-42086-TR1G |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Transistors - Bipolar (BJT) - RF |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Transistor NPN 12V 80mA 8GHz 500mW Surface Mount 86 Plastic |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AT-42086-TR1G Datasheet |
| Internal Part Number | 898-AT-42086-TR1G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 18/Mar/2013 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - RF | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Transistor Type | NPN | |
| Voltage - Collector Emitter Breakdown (Max) | 12V | |
| Frequency - Transition | 8GHz | |
| Noise Figure (dB Typ @ f) | 1.9dB ~ 3.5dB @ 2GHz ~ 4GHz | |
| Gain | 9dB ~ 13dB | |
| Power - Max | 500mW | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 35mA, 8V | |
| Current - Collector (Ic) (Max) | 80mA | |
| Mounting Type | Surface Mount | |
| Package / Case | SOT-86 | |
| Supplier Device Package | 86 Plastic | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AT-42086-TR1G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AT-42086-TR1G is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of AT-42086-TR1G is new and unused, you can buy AT-42086-TR1G Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AT-42086-TR1G.
