| Manufacturer Part Number: | AT90PWM3B-16SU |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 14057 Pieces |
| Unit Price: | Quote by Email |
| Description: | AVR AVR® 90PWM Lighting Microcontroller IC 8-Bit 16MHz 8KB (8K x 8) FLASH 32-SOIC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AT90PWM3B-16SU Datasheet |
| Internal Part Number | 898-AT90PWM3B-16SU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MCU Product Line Introduction megaAVR Introduction Software Framework (ASF) Example of Use Studio Introduction to Software Framework (ASF) Studio Development Environment Overview Part 1 | |
| Video File | Introducing Atmel Studio 7 Atmel: picoPower Labs - The Parrot | |
| Design Resources | Development Tool Selector | |
| PCN Obsolescence/ EOL | EOL 31/May/2016 | |
| PCN Design/Specification | Added Copper Bonding Wire 11/Sep/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Atmel | |
| Series | AVR® 90PWM Lighting | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Core Processor | AVR | |
| Core Size | 8-Bit | |
| Speed | 16MHz | |
| Connectivity | SPI, UART/USART | |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | |
| Number of I/O | 27 | |
| Program Memory Size | 8KB (8K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | 512 x 8 | |
| RAM Size | 512 x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 5.5 V | |
| Data Converters | A/D 11x10b; D/A 1x10b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 105°C (TA) | |

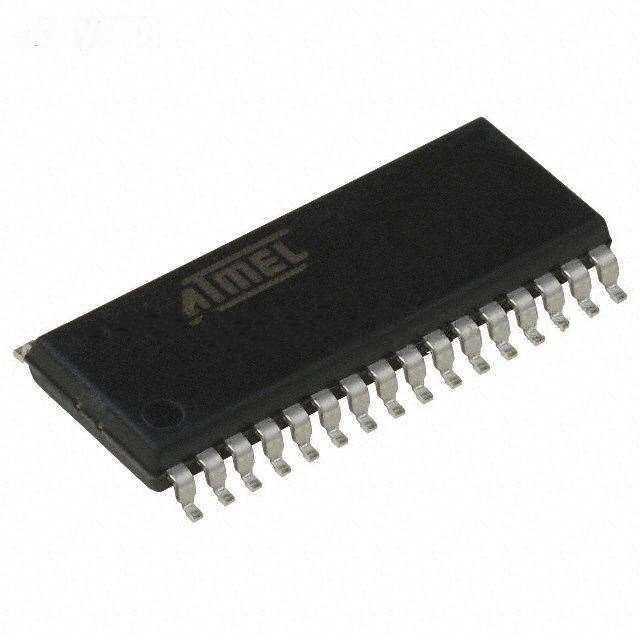

| Package / Case | 32-SOIC (0.295", 7.50mm Width) | |
| Supplier Device Package | 32-SOIC | |
| Standard Package | 828 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AT90PWM3B-16SU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AT90PWM3B-16SU is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of AT90PWM3B-16SU is new and unused, you can buy AT90PWM3B-16SU Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AT90PWM3B-16SU.
