| Manufacturer Part Number: | AT91CAP7E-NA-ZJ |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ARM7® CAP™ Microcontroller IC 16/32-Bit 80MHz 256KB (256K x 8) ROM 225-LFBGA (13x13) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AT91CAP7E-NA-ZJ Datasheet |
| Internal Part Number | 898-AT91CAP7E-NA-ZJ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Introducing Atmel Studio 7 Atmel START Overview | |
| Design Resources | Development Tool Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Atmel | |
| Series | CAP™ | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Core Processor | ARM7® | |
| Core Size | 16/32-Bit | |
| Speed | 80MHz | |
| Connectivity | EBI/EMI, FPGA, IrDA, SPI, UART/USART, USB | |
| Peripherals | DMA, POR, PWM, WDT | |
| Number of I/O | 32 | |
| Program Memory Size | 256KB (256K x 8) | |
| Program Memory Type | ROM | |
| EEPROM Size | - | |
| RAM Size | 160K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.08 V ~ 3.6 V | |
| Data Converters | A/D 8x10b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

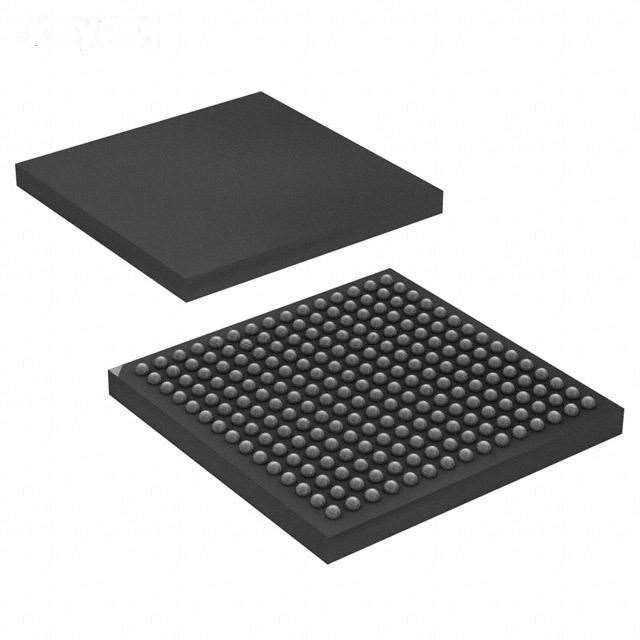

| Package / Case | 225-LFBGA | |
| Supplier Device Package | 225-LFBGA (13x13) | |
| Standard Package | 160 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AT91CAP7E-NA-ZJ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AT91CAP7E-NA-ZJ is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of AT91CAP7E-NA-ZJ is new and unused, you can buy AT91CAP7E-NA-ZJ Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AT91CAP7E-NA-ZJ.
