| Manufacturer Part Number: | BD7F100HFN-LBTR |
|---|---|
| Manufacturer: | Rohm Semiconductor |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Flyback Switching Regulator IC Positive, Isolation Capable Adjustable 0.78V 1 Output 1A (Switch) 8-SMD, Flat Lead Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BD7F100HFN-LBTR Datasheet |
| Internal Part Number | 898-BD7F100HFN-LBTR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | BD7F100 Optocoupler-less Isolated Flyback Converters | |
| Online Catalog | Flyback | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Rohm Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Up/Step-Down | |
| Output Configuration | Positive, Isolation Capable | |
| Topology | Flyback | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 3V | |
| Voltage - Input (Max) | 40V | |
| Voltage - Output (Min/Fixed) | 0.78V | |
| Voltage - Output (Max) | 50V (Switch) | |
| Current - Output | 1A (Switch) | |
| Frequency - Switching | 400kHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

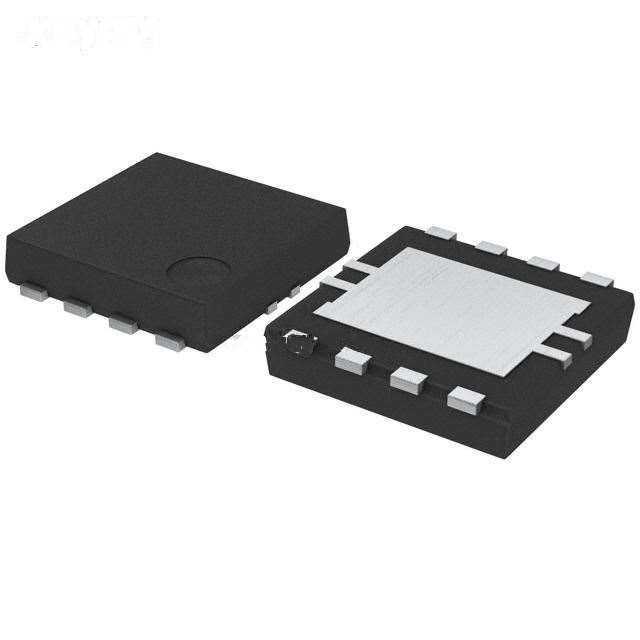

| Package / Case | 8-SMD, Flat Lead Exposed Pad | |
| Supplier Device Package | 8-HSON | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BD7F100HFN-LBTR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BD7F100HFN-LBTR is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of BD7F100HFN-LBTR is new and unused, you can buy BD7F100HFN-LBTR Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BD7F100HFN-LBTR.
