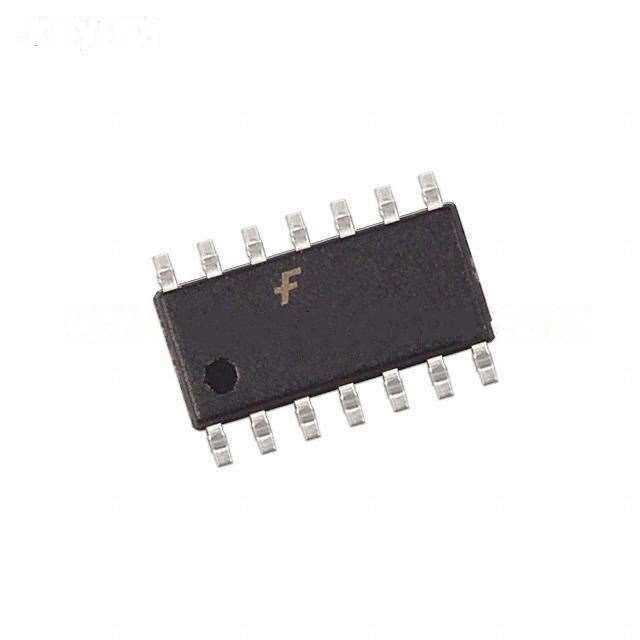

| Manufacturer Part Number: | CD4001BCSJ |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Logic - Gates and Inverters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | NOR Gate IC 4 Channel 14-SOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CD4001BCSJ Datasheet |
| Internal Part Number | 898-CD4001BCSJ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Gates and Inverters | |
| Manufacturer | Fairchild Semiconductor | |
| Series | 4000B | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Logic Type | NOR Gate | |
| Number of Circuits | 4 | |
| Number of Inputs | 2 | |
| Features | - | |
| Voltage - Supply | 3 V ~ 15 V | |
| Current - Quiescent (Max) | 1µA | |
| Current - Output High, Low | 3.4mA, 3.4mA | |
| Logic Level - Low | 1.5 V ~ 4 V | |
| Logic Level - High | 3.5 V ~ 11 V | |
| Max Propagation Delay @ V, Max CL | 70ns @ 15V, 50pF | |
| Operating Temperature | -55°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | 14-SOP | |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) | |
| Standard Package | 47 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CD4001BCSJ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CD4001BCSJ is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of CD4001BCSJ is new and unused, you can buy CD4001BCSJ Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CD4001BCSJ.
