| Manufacturer Part Number: | CDBA120SL-G |
|---|---|
| Manufacturer: | Comchip Technology |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Schottky 20V 1A Surface Mount SMA-F / DO-214AC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CDBA120SL-G Datasheet |
| Internal Part Number | 898-CDBA120SL-G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Surge Protection Diodes Flat Chip Diodes | |
| Featured Product | Super Low Forward-Voltage (VF) Schottky Diode | |
| PCN Packaging | Label D/C Chg24/Mar/2016 | |
| PCN Other | Part Conversion NRND 05/Jan/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Comchip Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Not Available | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 20V | |
| Current - Average Rectified (Io) | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 310mV @ 1A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 1mA @ 20V | |
| Capacitance @ Vr, F | 160pF @ 4V, 1MHz | |
| Mounting Type | Surface Mount | |

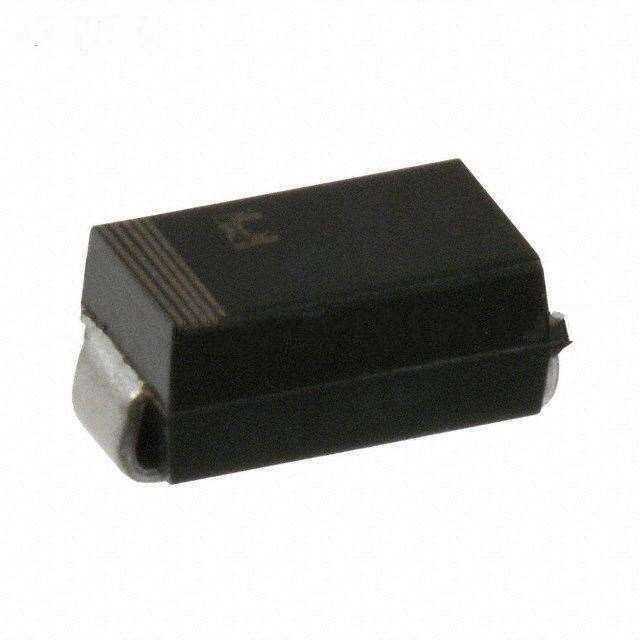

| Package / Case | DO-214AC, SMA | |
| Supplier Device Package | SMA-F / DO-214AC | |
| Operating Temperature - Junction | -20°C ~ 80°C | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CDBA120SL-G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CDBA120SL-G is in stock for immediate shipping now. We are the distributor of Comchip Technology all series components. The condition of CDBA120SL-G is new and unused, you can buy CDBA120SL-G Comchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDBA120SL-G.
