| Manufacturer Part Number: | CEDM8001VL TR |
|---|---|
| Manufacturer: | Central Semiconductor Corp |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CH 20V 0.1A SOT883 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CEDM8001VL TR Datasheet |
| Internal Part Number | 898-CEDM8001VL TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Declaration of Compliance | |
| Online Catalog | P-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Central Semiconductor Corp | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) | |
| Rds On (Max) @ Id, Vgs | 8 Ohm @ 10mA, 4V | |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 0.66nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 45pF @ 3V | |
| Power - Max | 100mW | |
| Operating Temperature | -65°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

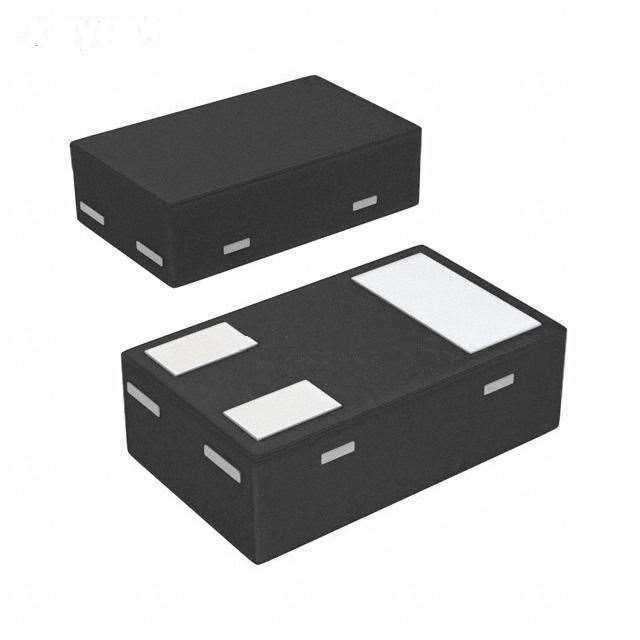

| Package / Case | SC-101, SOT-883 | |
| Supplier Device Package | SOT-883VL | |
| Standard Package | 8,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CEDM8001VL TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CEDM8001VL TR is in stock for immediate shipping now. We are the distributor of Central Semiconductor Corp all series components. The condition of CEDM8001VL TR is new and unused, you can buy CEDM8001VL TR Central Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CEDM8001VL TR.
