| Manufacturer Part Number: | CSD25304W1015 |
|---|---|
| Manufacturer: | T-I |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 12347 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CH 20V 3A 6DSBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CSD25304W1015 Datasheet |
| Internal Part Number | 898-CSD25304W1015 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Manufacturer Product Page | CSD25304W1015 Specifications | |
| Online Catalog | P-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | T I | |
| Series | NexFET™ | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) | |
| Rds On (Max) @ Id, Vgs | 32.5 mOhm @ 1.5A, 4.5V | |
| Vgs(th) (Max) @ Id | 1.15V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 4.4nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 595pF @ 10V | |
| Power - Max | 750mW | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

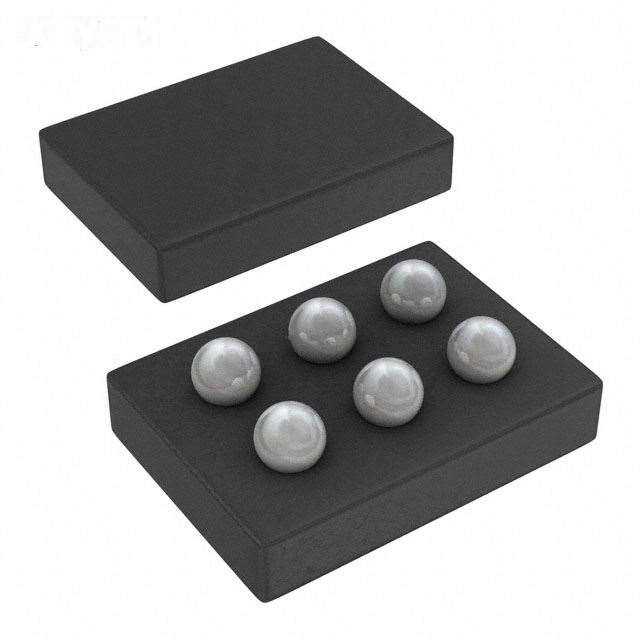

| Package / Case | 6-UFBGA, DSBGA | |
| Supplier Device Package | 6-DSBGA | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CSD25304W1015 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CSD25304W1015 is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of CSD25304W1015 is new and unused, you can buy CSD25304W1015 T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CSD25304W1015.
