| Manufacturer Part Number: | CY7C68013A-56LTXCT |
|---|---|
| Manufacturer: | Cypress Semiconductor Corp |
| Product Category: | Embedded - Microcontrollers - Application Specific |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC MCU USB PHERIPH FX2LP 56VQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | CY7C68013A-56LTXCT Datasheet |
| Internal Part Number | 898-CY7C68013A-56LTXCT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Qualification Tape Supplier 18/Mar/2014 Qualification Carrier Tape Supplier 02/Jun/2014 | |
| PCN Packaging | New Tray and TR Materials 13/Dec/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers - Application Specific | |
| Manufacturer | Cypress Semiconductor Corp | |
| Series | EZ-USB FX2LP™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Applications | USB Microcontroller | |
| Core Processor | 8051 | |
| Program Memory Type | ROMless | |
| Controller Series | CY7C680xx | |
| RAM Size | 16K x 8 | |
| Interface | I²C, USB, USART | |
| Number of I/O | 24 | |
| Voltage - Supply | 3 V ~ 3.6 V | |
| Operating Temperature | 0°C ~ 70°C | |
| Mounting Type | Surface Mount | |

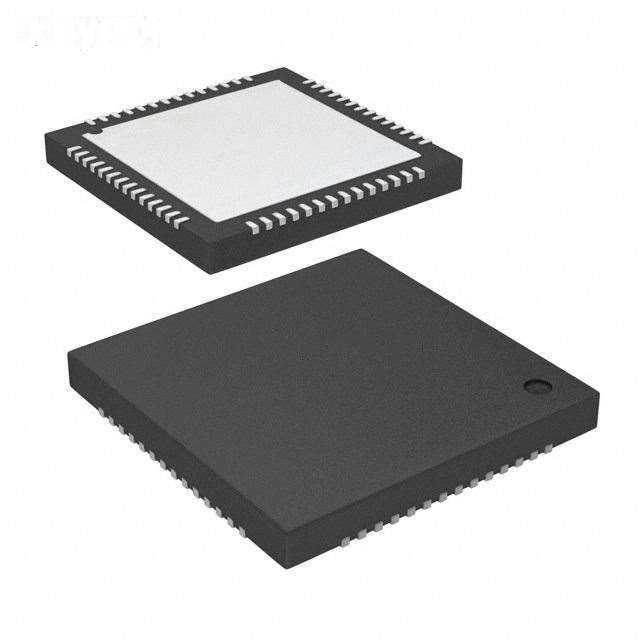

| Package / Case | 56-VFQFN Exposed Pad | |
| Supplier Device Package | 56-QFN (8x8) Sawn | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | CY7C68013A-56LTXCT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
CY7C68013A-56LTXCT is in stock for immediate shipping now. We are the distributor of Cypress Semiconductor Corp all series components. The condition of CY7C68013A-56LTXCT is new and unused, you can buy CY7C68013A-56LTXCT Cypress Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CY7C68013A-56LTXCT.
