| Manufacturer Part Number: | DB2X20100L |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE GEN PURP 20V 500MA SOD123 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DB2X20100L Datasheet |
| Internal Part Number | 898-DB2X20100L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Wearables Technology Components | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 20V | |
| Current - Average Rectified (Io) | 500mA | |
| Voltage - Forward (Vf) (Max) @ If | 550mV @ 500mA | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 4.3ns | |
| Current - Reverse Leakage @ Vr | 10µA @ 10V | |
| Capacitance @ Vr, F | 12pF @ 10V, 1MHz | |
| Mounting Type | Surface Mount | |

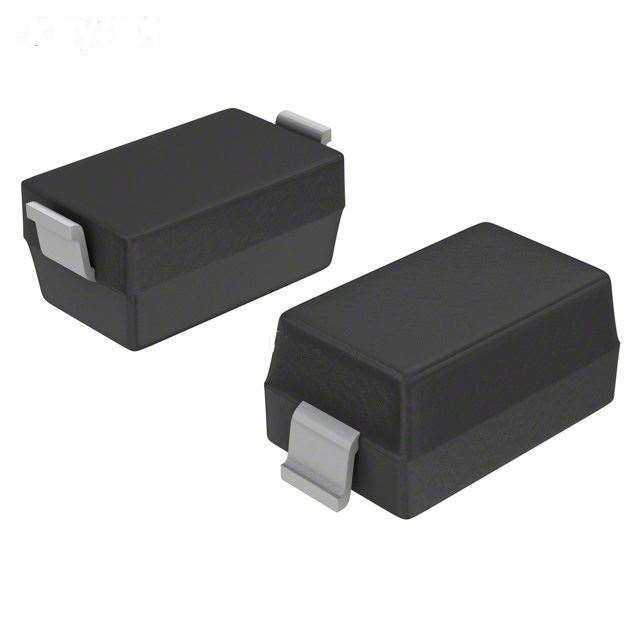

| Package / Case | SOD-123 | |
| Supplier Device Package | SOD-123 | |
| Operating Temperature - Junction | 125°C (Max) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DB2X20100L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DB2X20100L is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of DB2X20100L is new and unused, you can buy DB2X20100L Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DB2X20100L.
