| Manufacturer Part Number: | DG449DS-T1-E3 |
|---|---|
| Manufacturer: | Vishay Siliconix |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 21010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1 Circuit IC Switch 2:1 45 Ohm SOT-23-8 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DG449DS-T1-E3 Datasheet |
| Internal Part Number | 898-DG449DS-T1-E3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Switch | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Vishay Siliconix | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 1 | |
| On-State Resistance (Max) | 45 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 5 Ohm (Max) | |
| Voltage - Supply, Single (V+) | 7 V ~ 36 V | |
| Voltage - Supply, Dual (V±) | ±4.5 V ~ 20 V | |
| Switch Time (Ton, Toff) (Max) | 146ns, 104ns | |
| -3db Bandwidth | - | |
| Charge Injection | 5pC | |
| Channel Capacitance (CS(off), CD(off)) | 8pF | |
| Current - Leakage (IS(off)) (Max) | 1nA | |
| Crosstalk | -80dB @ 1MHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

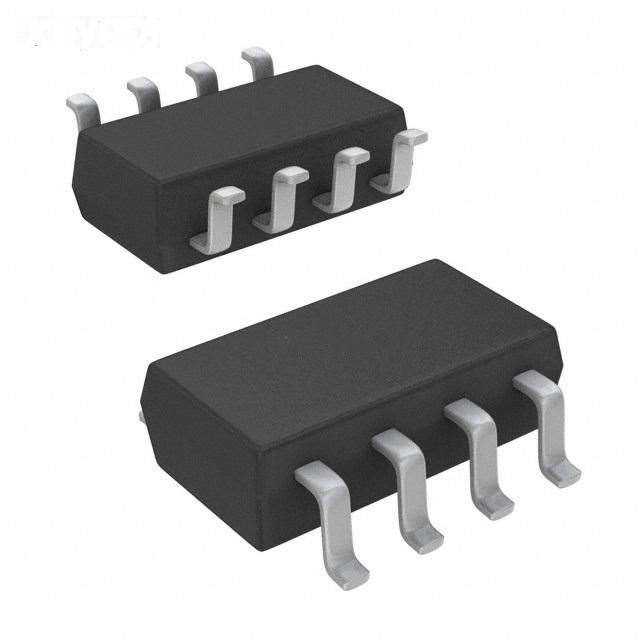

| Package / Case | SOT-23-8 | |
| Supplier Device Package | SOT-23-8 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DG449DS-T1-E3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DG449DS-T1-E3 is in stock for immediate shipping now. We are the distributor of Vishay Siliconix all series components. The condition of DG449DS-T1-E3 is new and unused, you can buy DG449DS-T1-E3 Vishay Siliconix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DG449DS-T1-E3.
