| Manufacturer Part Number: | DG643DJ-E3 |
|---|---|
| Manufacturer: | Vishay Siliconix |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Circuit IC Switch 2:1 15 Ohm 16-PDIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DG643DJ-E3 Datasheet |
| Internal Part Number | 898-DG643DJ-E3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Vishay Siliconix | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 2 | |
| On-State Resistance (Max) | 15 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 1 Ohm | |
| Voltage - Supply, Single (V+) | 3 V ~ 15 V | |
| Voltage - Supply, Dual (V±) | ±3 V ~ 15 V | |
| Switch Time (Ton, Toff) (Max) | 70ns, 50ns | |
| -3db Bandwidth | 500MHz | |
| Charge Injection | 19pC | |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF | |
| Current - Leakage (IS(off)) (Max) | 10nA | |
| Crosstalk | -87dB @ 5MHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

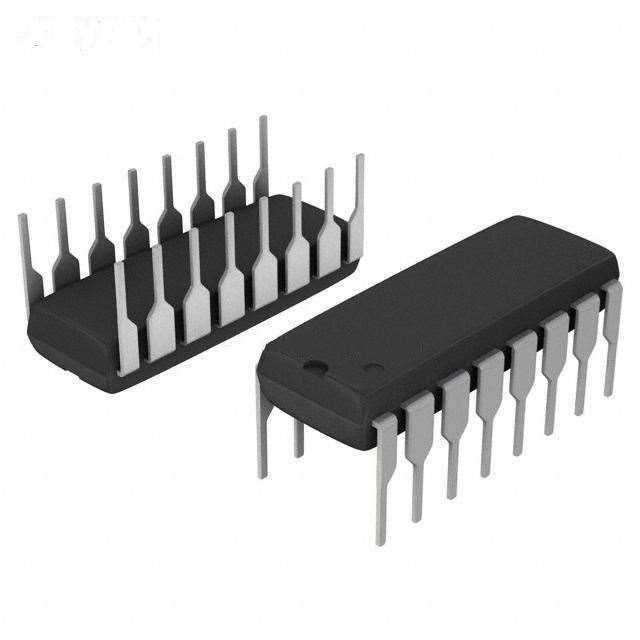

| Package / Case | 16-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 16-PDIP | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DG643DJ-E3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DG643DJ-E3 is in stock for immediate shipping now. We are the distributor of Vishay Siliconix all series components. The condition of DG643DJ-E3 is new and unused, you can buy DG643DJ-E3 Vishay Siliconix with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DG643DJ-E3.
