| Manufacturer Part Number: | DIMD10A-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Transistors - Bipolar (BJT) - Arrays, Pre-Biased |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS NPN/PNP PREBIAS 0.3W SC74R |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DIMD10A-7 Datasheet |
| Internal Part Number | 898-DIMD10A-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| PCN Design/Specification | Leadframe Material Update 09/Apr/2014 | |
| PCN Other | Copper Bond Wire and Wafer Source 07/Nov/2013 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Arrays, Pre-Biased | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) | |
| Current - Collector (Ic) (Max) | 100mA, 500mA | |
| Voltage - Collector Emitter Breakdown (Max) | 50V | |
| Resistor - Base (R1) (Ohms) | 10k, 100 | |
| Resistor - Emitter Base (R2) (Ohms) | 10k | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V | |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 1mA, 10mA / 300mV @ 5mA, 100mA | |
| Current - Collector Cutoff (Max) | 500nA | |
| Frequency - Transition | 250MHz, 200MHz | |
| Power - Max | 300mW | |
| Mounting Type | Surface Mount | |

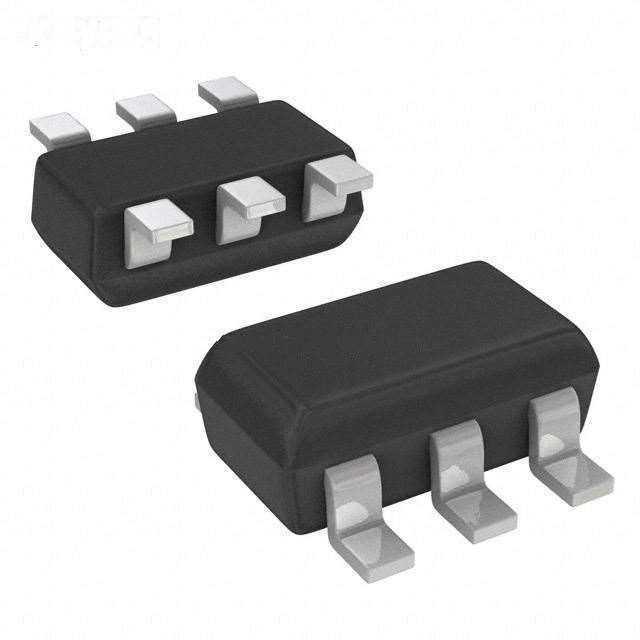

| Package / Case | SC-74, SOT-457 | |
| Supplier Device Package | SC-74R | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DIMD10A-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DIMD10A-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of DIMD10A-7 is new and unused, you can buy DIMD10A-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DIMD10A-7.
