| Manufacturer Part Number: | DLD101-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 1 Output Linear PWM Dimming 1A 8-DFN3030D (3x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DLD101-7 Datasheet |
| Internal Part Number | 898-DLD101-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| Design Resources | Lighting Product Selector | |
| Online Catalog | Linear | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Diodes Incorporated | |
| Series | Automotive, AEC-Q101 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Linear | |
| Topology | - | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | - | |
| Voltage - Supply (Max) | 50V | |
| Voltage - Output | - | |
| Current - Output / Channel | 1A | |
| Frequency | - | |
| Dimming | PWM | |
| Applications | Backlight, Signage | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-UDFN Exposed Pad | |

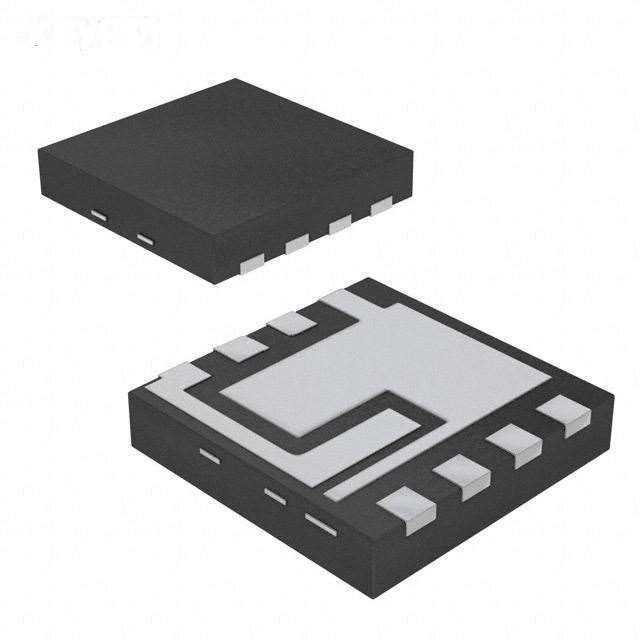

| Supplier Device Package | 8-DFN3030D (3x3) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DLD101-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DLD101-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of DLD101-7 is new and unused, you can buy DLD101-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DLD101-7.
