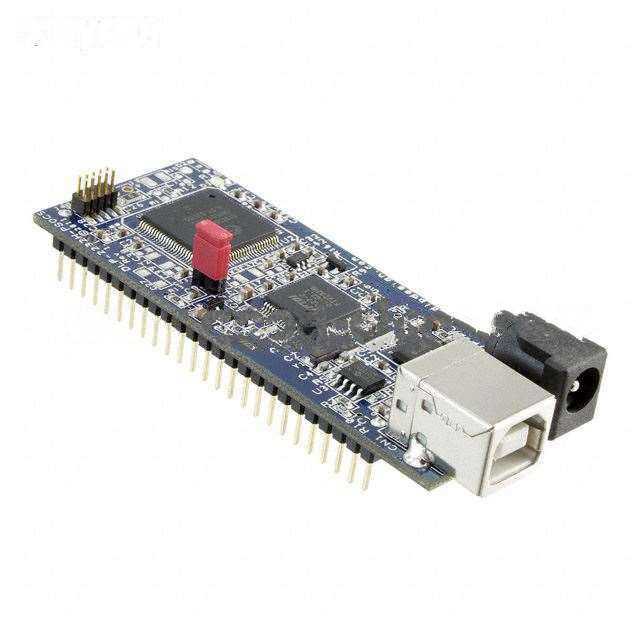

| Manufacturer Part Number: | DLP-2232H-PSOC5 |
|---|---|
| Manufacturer: | DLP Design Inc. |
| Product Category: | Embedded - Microcontroller or Microprocessor Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | USB Embedded Module CY8C5588 FT2232H 67MHz 64KB 256KB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DLP-2232H-PSOC5 Datasheet |
| Internal Part Number | 898-DLP-2232H-PSOC5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontroller or Microprocessor Modules | |
| Manufacturer | DLP Design Inc. | |
| Series | USB | |
| Part Status | Obsolete | |
| Module/Board Type | MCU, USB Core | |
| Core Processor | CY8C5588 | |
| Co-Processor | FT2232H | |
| Speed | 67MHz | |
| Flash Size | 256KB | |
| RAM Size | 64KB | |
| Connector Type | USB - B, Pin Header | |
| Size / Dimension | 3" x 1.2" (76.2mm x 30.5mm) | |
| Operating Temperature | 0°C ~ 70°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DLP-2232H-PSOC5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DLP-2232H-PSOC5 is in stock for immediate shipping now. We are the distributor of DLP Design Inc. all series components. The condition of DLP-2232H-PSOC5 is new and unused, you can buy DLP-2232H-PSOC5 DLP Design Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DLP-2232H-PSOC5.
