| Manufacturer Part Number: | DMC261020R |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Transistors - Bipolar (BJT) - Arrays, Pre-Biased |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS 2NPN PREBIAS 0.3W MINI5 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DMC261020R Datasheet |
| Internal Part Number | 898-DMC261020R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Wearables Technology Components | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | NPN Pre-Biased Transistor Arrays | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Arrays, Pre-Biased | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Transistor Type | 2 NPN - Pre-Biased (Dual) | |
| Current - Collector (Ic) (Max) | 100mA | |
| Voltage - Collector Emitter Breakdown (Max) | 50V | |
| Resistor - Base (R1) (Ohms) | 22k | |
| Resistor - Emitter Base (R2) (Ohms) | 22k | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 10V | |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 500µA, 10mA | |
| Current - Collector Cutoff (Max) | 500nA | |
| Frequency - Transition | - | |
| Power - Max | 300mW | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-74A, SOT-753 | |

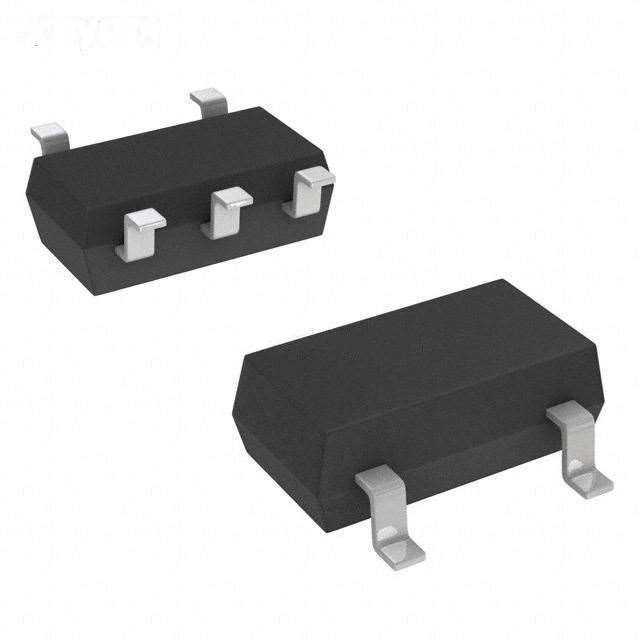

| Supplier Device Package | Mini5-G3-B | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DMC261020R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DMC261020R is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of DMC261020R is new and unused, you can buy DMC261020R Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DMC261020R.
