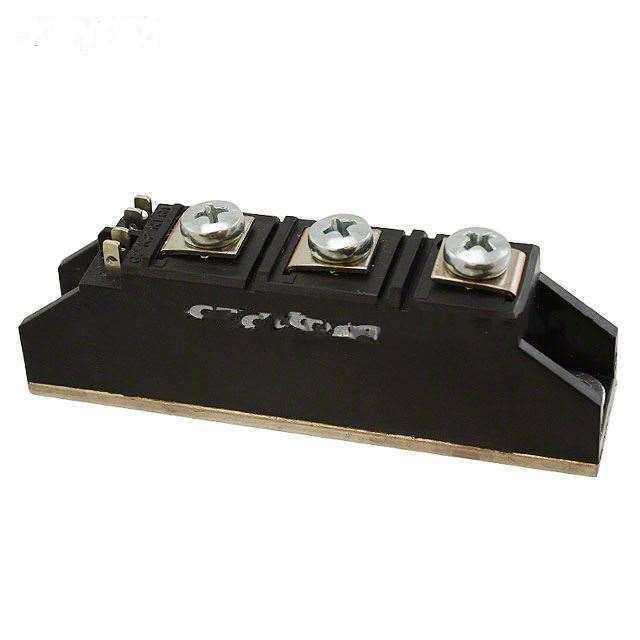

| Manufacturer Part Number: | F1857SD1200 |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Thyristors - SCRs - Modules |
| Available Quantity: | 9023 Pieces |
| Unit Price: | Quote by Email |
| Description: | SCR Module 1200V 55A (DC) Series Connection - All SCRs Chassis Mount Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | F1857SD1200 Datasheet |
| Internal Part Number | 898-F1857SD1200 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SCR Module Selection Guide Declaration of Conformity | |
| Product Training Modules | Solid State Relays | |
| 3D Model | F18 SD, SDK Series.sat F18 SD, SDK Series.dwg F18 SD, SDK Series.stp | |
| Online Catalog | F18 Series | |
| Category | Discrete Semiconductor Products | |
| Family | Thyristors - SCRs - Modules | |
| Manufacturer | Crydom Co. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Structure | Series Connection - All SCRs | |
| Number of SCRs, Diodes | 2 SCRs | |
| Voltage - Off State | 1200V | |
| Current - Gate Trigger (Igt) (Max) | 150mA | |
| Current - On State (It (AV)) (Max) | - | |
| Current - On State (It (RMS)) (Max) | 55A (DC) | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1500A @ 60Hz | |
| Current - Hold (Ih) (Max) | - | |
| Mounting Type | Chassis Mount | |
| Package / Case | Module | |
| Standard Package | 5 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | F1857SD1200 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
F1857SD1200 is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of F1857SD1200 is new and unused, you can buy F1857SD1200 Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for F1857SD1200.
