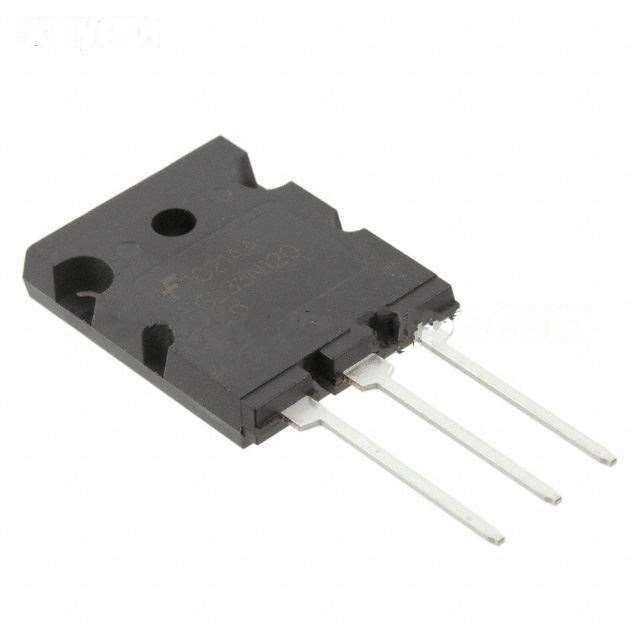

| Manufacturer Part Number: | FGL35N120FTDTU |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9374 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Trench Field Stop 1200V 70A 368W Through Hole TO-264-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FGL35N120FTDTU Datasheet |
| Internal Part Number | 898-FGL35N120FTDTU | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | 650 V, 30A/40A/60A, Field Stop Trench, FS3 IGBT for Optimum Performance | |
| PCN Assembly/Origin | Assembly Site Transfer 06/Apr/2015 | |
| PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 70A | |
| Current - Collector Pulsed (Icm) | 105A | |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 35A | |
| Power - Max | 368W | |
| Switching Energy | 2.5mJ (on), 1.7mJ (off) | |
| Input Type | Standard | |
| Gate Charge | 210nC | |
| Td (on/off) @ 25°C | 34ns/172ns | |
| Test Condition | 600V, 35A, 10 Ohm, 15V | |
| Reverse Recovery Time (trr) | 337ns | |
| Package / Case | TO-264-3, TO-264AA | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-264-3 | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FGL35N120FTDTU | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FGL35N120FTDTU is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FGL35N120FTDTU is new and unused, you can buy FGL35N120FTDTU Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FGL35N120FTDTU.
