| Manufacturer Part Number: | FS6X0420RJ |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - AC DC Converters, Offline Switchers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Converter Offline Flyback, Forward Topology 300kHz D²PAK-6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FS6X0420RJ Datasheet |
| Internal Part Number | 898-FS6X0420RJ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - AC DC Converters, Offline Switchers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | FPS™ | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Output Isolation | Isolated | |
| Internal Switch(s) | Yes | |
| Voltage - Breakdown | 200V | |
| Topology | Flyback, Forward | |
| Voltage - Start Up | 15V | |
| Voltage - Supply (Vcc/Vdd) | 9 V ~ 35 V | |
| Duty Cycle | 80% | |
| Frequency - Switching | 300kHz | |
| Power (Watts) | 14W | |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage | |
| Control Features | - | |
| Operating Temperature | -25°C ~ 85°C (TA) | |

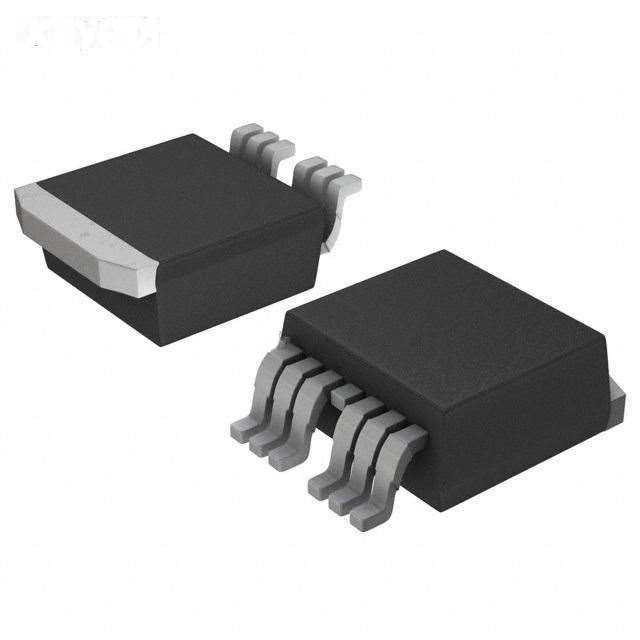

| Package / Case | TO-263-7, D²Pak (6 Leads + Tab), TO-263CB | |
| Supplier Device Package | D²PAK-6 | |
| Mounting Type | Surface Mount | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FS6X0420RJ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FS6X0420RJ is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FS6X0420RJ is new and unused, you can buy FS6X0420RJ Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FS6X0420RJ.
