| Manufacturer Part Number: | FSFR1600XSL |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - AC DC Converters, Offline Switchers |
| Available Quantity: | 9372 Pieces |
| Unit Price: | Quote by Email |
| Description: | Converter Offline Half-Bridge Topology Up to 300kHz 9-SIP (L forming) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FSFR1600XSL Datasheet |
| Internal Part Number | 898-FSFR1600XSL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - AC DC Converters, Offline Switchers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | FSFR-XS | |
| Packaging | Tube | |
| Part Status | Active | |
| Output Isolation | Isolated | |
| Internal Switch(s) | Yes | |
| Voltage - Breakdown | 500V | |
| Topology | Half-Bridge | |
| Voltage - Start Up | 12.5V | |
| Voltage - Supply (Vcc/Vdd) | 10 V ~ 25 V | |
| Duty Cycle | 50% | |
| Frequency - Switching | Up to 300kHz | |
| Power (Watts) | 160W | |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage | |
| Control Features | Frequency Control | |
| Operating Temperature | -40°C ~ 130°C (TJ) | |
| Package / Case | 10-SIP Module (9 Leads) | |

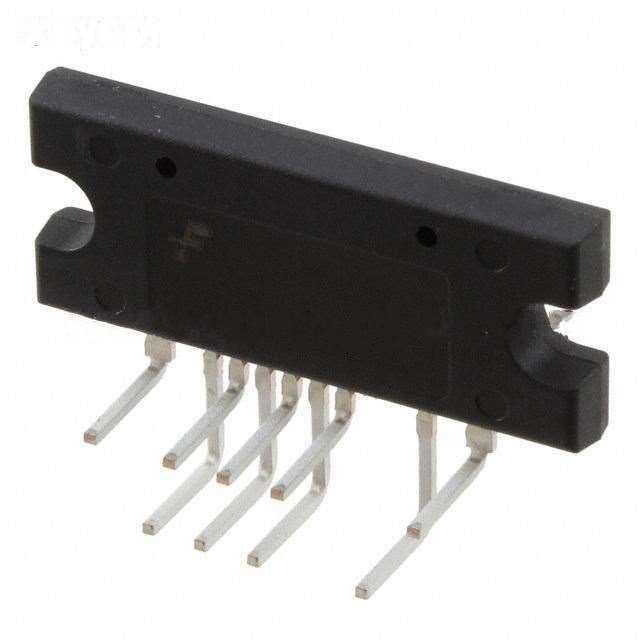

| Supplier Device Package | 9-SIP (L forming) | |
| Mounting Type | Through Hole | |
| Standard Package | 19 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FSFR1600XSL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FSFR1600XSL is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FSFR1600XSL is new and unused, you can buy FSFR1600XSL Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FSFR1600XSL.
