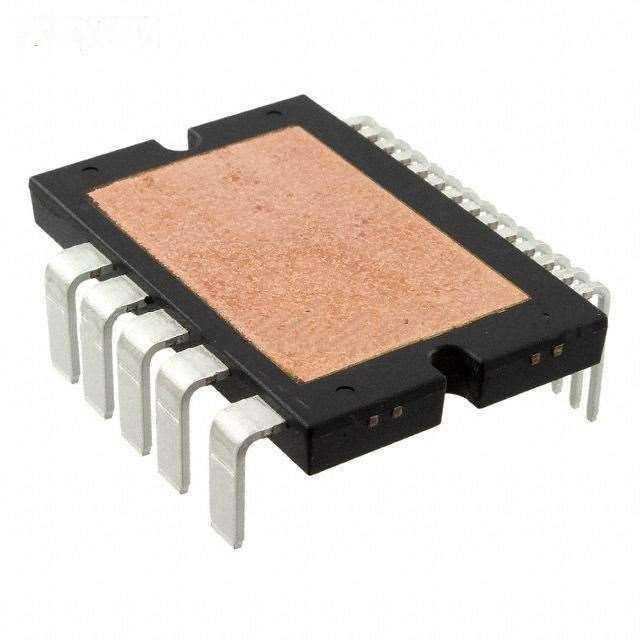

| Manufacturer Part Number: | FTCO3V455A1 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9279 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 6N-CH 40V 150A MODULE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FTCO3V455A1 Datasheet |
| Internal Part Number | 898-FTCO3V455A1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Automotive Solutions Guide | |
| Video File | Automotive Powertrain and Power Module Solutions Fairchild Field Stop Trench IGBT | Digi-Key Daily | |
| Featured Product | One-Stop Automotive Shop Transportation Vehicles and Heavy Equipment Hybrid and Electric Vehicle Solutions | |
| PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
| Online Catalog | N-Channel Logic Level Gate FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Fairchild Semiconductor | |
| Series | SPM® | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | 6 N-Channel (3-Phase Bridge) | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 40V | |
| Current - Continuous Drain (Id) @ 25°C | 150A | |
| Rds On (Max) @ Id, Vgs | 1.66 mOhm @ 80A, 10V | |
| Vgs(th) (Max) @ Id | - | |
| Gate Charge (Qg) @ Vgs | - | |
| Input Capacitance (Ciss) @ Vds | - | |
| Power - Max | 115W | |
| Operating Temperature | 175°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | 19-PowerDIP Module | |
| Supplier Device Package | Module | |
| Standard Package | 11 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FTCO3V455A1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FTCO3V455A1 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FTCO3V455A1 is new and unused, you can buy FTCO3V455A1 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FTCO3V455A1.
