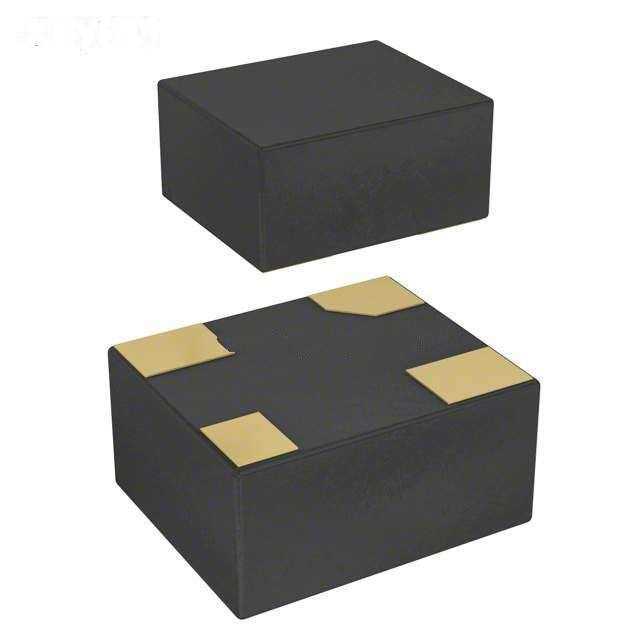

| Manufacturer Part Number: | HMPS-2822-BLK |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Diodes - RF |
| Available Quantity: | 10788 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Diode Schottky - 2 Independent 15V 1A MiniPak 1412 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMPS-2822-BLK Datasheet |
| Internal Part Number | 898-HMPS-2822-BLK | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Platform Ceramic 12/Mar/2013 | |
| PCN Packaging | Alternate ESD Lock Reel Supplier 24/Jul/2014 | |
| Online Catalog | Schottky Barrier Diodes | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - RF | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Type | Schottky - 2 Independent | |
| Voltage - Peak Reverse (Max) | 15V | |
| Current - Max | 1A | |
| Capacitance @ Vr, F | 1pF @ 0V, 1MHz | |
| Resistance @ If, F | 12 Ohm @ 5mA, 1MHz | |
| Power Dissipation (Max) | - | |
| Package / Case | 4-UQFN | |
| Supplier Device Package | MiniPak 1412 | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMPS-2822-BLK | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMPS-2822-BLK is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HMPS-2822-BLK is new and unused, you can buy HMPS-2822-BLK Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMPS-2822-BLK.
