| Manufacturer Part Number: | IHW30N120R3FKSA1 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT 1200V 60A 349W Surface Mount TO-247-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IHW30N120R3FKSA1 Datasheet |
| Internal Part Number | 898-IHW30N120R3FKSA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | TrenchStop® | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 60A | |
| Current - Collector Pulsed (Icm) | 90A | |
| Vce(on) (Max) @ Vge, Ic | 1.75V @ 15V, 30A | |
| Power - Max | 349W | |
| Switching Energy | 1.47mJ (off) | |
| Input Type | Standard | |
| Gate Charge | 263nC | |
| Td (on/off) @ 25°C | -/326ns | |
| Test Condition | 600V, 30A, 10 Ohm, 15V | |
| Reverse Recovery Time (trr) | - | |

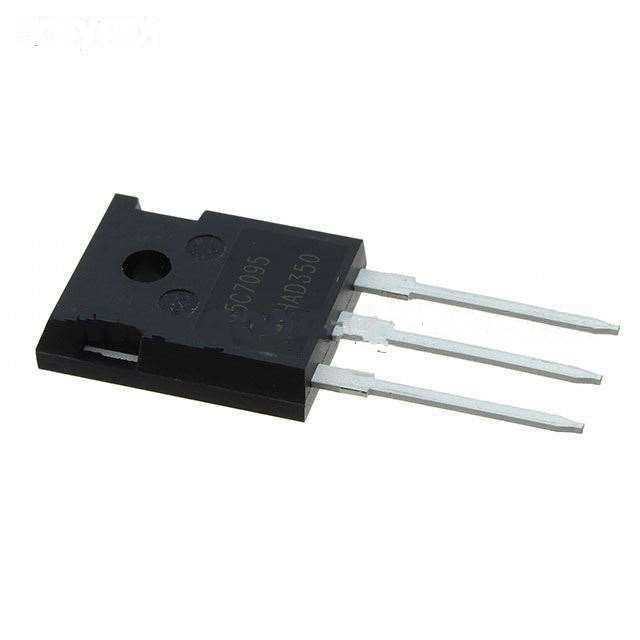

| Package / Case | TO-247-3 | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | TO-247-3 | |
| Standard Package | 240 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IHW30N120R3FKSA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IHW30N120R3FKSA1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IHW30N120R3FKSA1 is new and unused, you can buy IHW30N120R3FKSA1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IHW30N120R3FKSA1.
