| Manufacturer Part Number: | IKQ100N60TAXKSA1 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Trench Field Stop 600V 160A 714W Through Hole PG-TO247-3-46 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IKQ100N60TAXKSA1 Datasheet |
| Internal Part Number | 898-IKQ100N60TAXKSA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | Automotive, AEC-Q101, TrenchStop™ | |
| Packaging | Tube | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 160A | |
| Current - Collector Pulsed (Icm) | 400A | |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 100A | |
| Power - Max | 714W | |
| Switching Energy | 3.1mJ (on), 2.5mJ (off) | |
| Input Type | Standard | |
| Gate Charge | 610nC | |
| Td (on/off) @ 25°C | 30ns/290ns | |
| Test Condition | 400V, 100A, 3.6 Ohm, 15V | |
| Reverse Recovery Time (trr) | 225ns | |

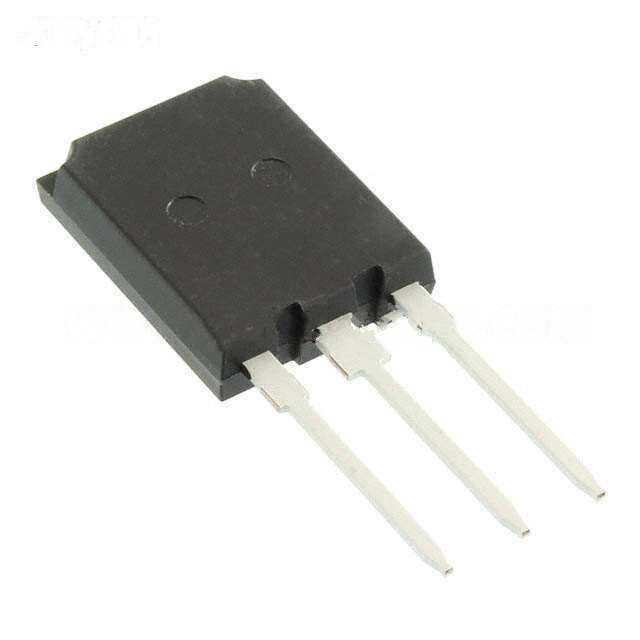

| Package / Case | TO-247-3 | |
| Mounting Type | Through Hole | |
| Supplier Device Package | PG-TO247-3-46 | |
| Standard Package | 240 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IKQ100N60TAXKSA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IKQ100N60TAXKSA1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IKQ100N60TAXKSA1 is new and unused, you can buy IKQ100N60TAXKSA1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IKQ100N60TAXKSA1.
