| Manufacturer Part Number: | IMD16AT108 |
|---|---|
| Manufacturer: | Rohm Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Arrays, Pre-Biased |
| Available Quantity: | 21245 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS NPN/PNP PREBIAS 0.3W SMT6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IMD16AT108 Datasheet |
| Internal Part Number | 898-IMD16AT108 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | NPN, PNP Pre-Biased Transistor Arrays | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Arrays, Pre-Biased | |
| Manufacturer | Rohm Semiconductor | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Not For New Designs | |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) | |
| Current - Collector (Ic) (Max) | 100mA, 500mA | |
| Voltage - Collector Emitter Breakdown (Max) | 50V | |
| Resistor - Base (R1) (Ohms) | 100k, 2.2k | |
| Resistor - Emitter Base (R2) (Ohms) | 22k | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V / 82 @ 50mA, 5V | |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 2.5mA, 50mA / 300mV @ 100µA, 1mA | |
| Current - Collector Cutoff (Max) | - | |
| Frequency - Transition | 250MHz | |
| Power - Max | 300mW | |
| Mounting Type | Surface Mount | |

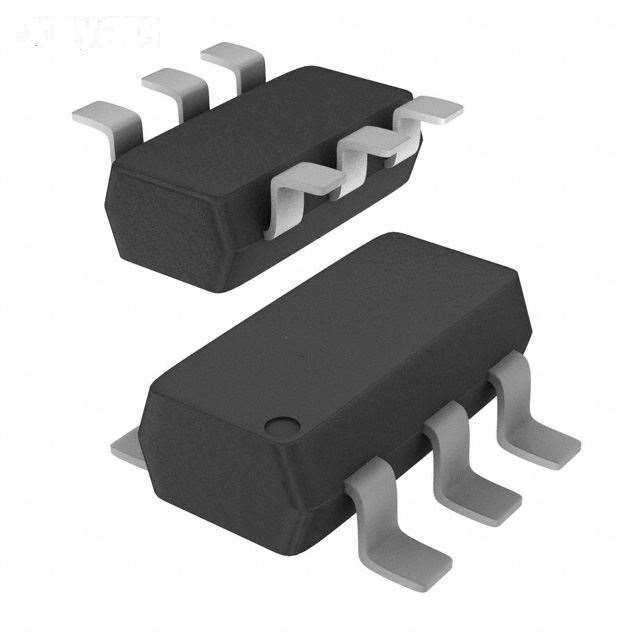

| Package / Case | SC-74, SOT-457 | |
| Supplier Device Package | SMT6 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IMD16AT108 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IMD16AT108 is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of IMD16AT108 is new and unused, you can buy IMD16AT108 Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IMD16AT108.
