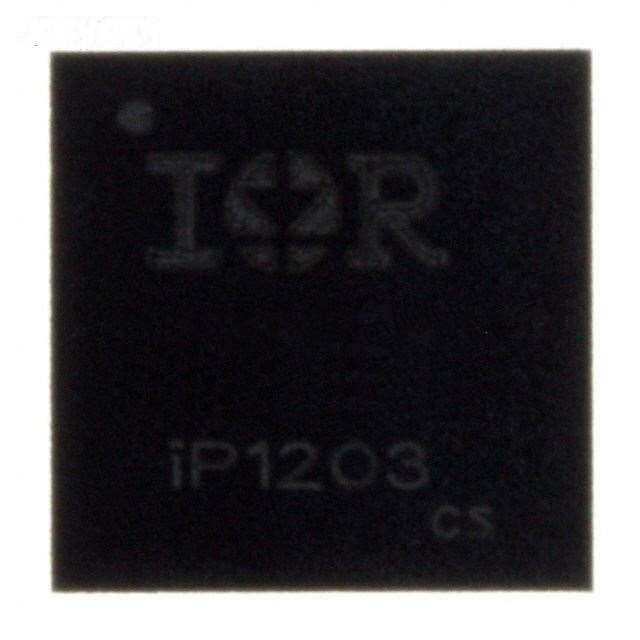

| Manufacturer Part Number: | IP1203TR |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 15A 24-LGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IP1203TR Datasheet |
| Internal Part Number | 898-IP1203TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | (EP) Parts 25/May/2012 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Infineon Technologies | |
| Series | iPOWIR™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 5.5V | |
| Voltage - Input (Max) | 13.2V | |
| Voltage - Output (Min/Fixed) | 0.8V | |
| Voltage - Output (Max) | 8V | |
| Current - Output | 15A | |
| Frequency - Switching | 170kHz ~ 460kHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -10°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 24-LGA | |
| Supplier Device Package | LGA (9x9) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IP1203TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IP1203TR is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IP1203TR is new and unused, you can buy IP1203TR Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IP1203TR.
