Manufacturer Part Number: | IPS118N10N G |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 100V 75A TO251-3 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IPS118N10N G Datasheet |
Internal Part Number | 898-IPS118N10N G | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 26/Jul/2012 | |
PCN Design/Specification | CoolMOS/OptiMOS Halogen Free 10/Dec/2008 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Infineon Technologies | |
Series | OptiMOS™ | |
Packaging | Tube | |
Part Status | Obsolete | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 100V | |
Current - Continuous Drain (Id) @ 25°C | 75A (Tc) | |
Rds On (Max) @ Id, Vgs | 11.8 mOhm @ 75A, 10V | |
Vgs(th) (Max) @ Id | 4V @ 83µA | |
Gate Charge (Qg) @ Vgs | 65nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 4320pF @ 50V | |
Power - Max | 125W | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Through Hole | |

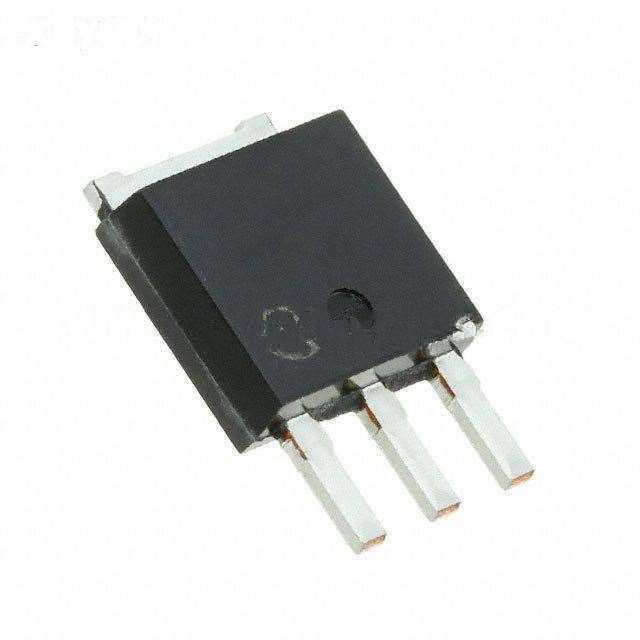

Package / Case | TO-251-3 Stub Leads, IPak | |
Supplier Device Package | PG-TO251-3 | |
Standard Package | 1,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IPS118N10N G | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IPS118N10N G is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IPS118N10N G is new and unused, you can buy IPS118N10N G Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IPS118N10N G.
