| Manufacturer Part Number: | IR2238QPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9298 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver IGBT Parallel 64-MQFP (20x14) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IR2238QPBF Datasheet |
| Internal Part Number | 898-IR2238QPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| Online Catalog | Controllers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | AC, Synchronous | |
| Function | Controller - Commutation, Direction Management | |
| Output Configuration | Pre-Driver - Half Bridge (3) | |
| Interface | Parallel | |
| Technology | IGBT | |
| Step Resolution | - | |
| Applications | General Purpose | |
| Current - Output | - | |
| Voltage - Supply | 12.5 V ~ 20 V | |
| Voltage - Load | - | |
| Operating Temperature | -20°C ~ 115°C (TA) | |
| Mounting Type | Surface Mount | |

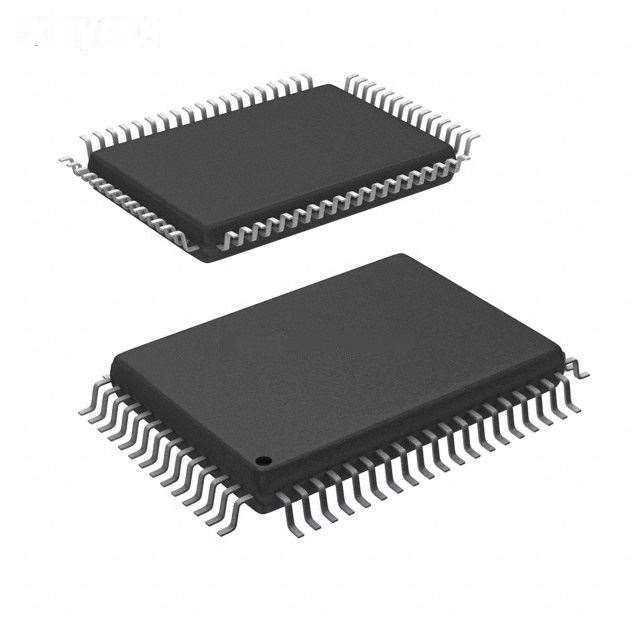

| Package / Case | 64-MQFP, 64-PQFP | |
| Supplier Device Package | 64-MQFP (20x14) | |
| Standard Package | 660 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IR2238QPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IR2238QPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IR2238QPBF is new and unused, you can buy IR2238QPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IR2238QPBF.
