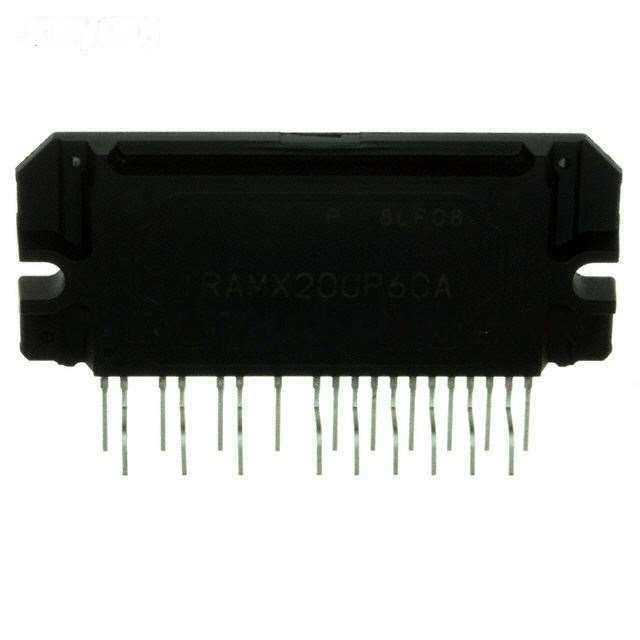

| Manufacturer Part Number: | IRAMX20UP60A |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Power Driver Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Power Driver Module IGBT 3 Phase 600V 20A SIP2 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRAMX20UP60A Datasheet |
| Internal Part Number | 898-IRAMX20UP60A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | IRAM Product Line Overview High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| PCN Assembly/Origin | IRAM Product Factory Relocation 9/Aug/2013 | |
| Online Catalog | iMotion™ IRAMX Series | |
| Category | Discrete Semiconductor Products | |
| Family | Power Driver Modules | |
| Manufacturer | Infineon Technologies | |
| Series | iMOTION™ | |
| Part Status | Active | |
| Type | IGBT | |
| Configuration | 3 Phase | |
| Current | 20A | |
| Voltage | 600V | |
| Voltage - Isolation | 2000Vrms | |
| Package / Case | SIP2 | |
| Standard Package | 80 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRAMX20UP60A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRAMX20UP60A is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRAMX20UP60A is new and unused, you can buy IRAMX20UP60A Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRAMX20UP60A.
