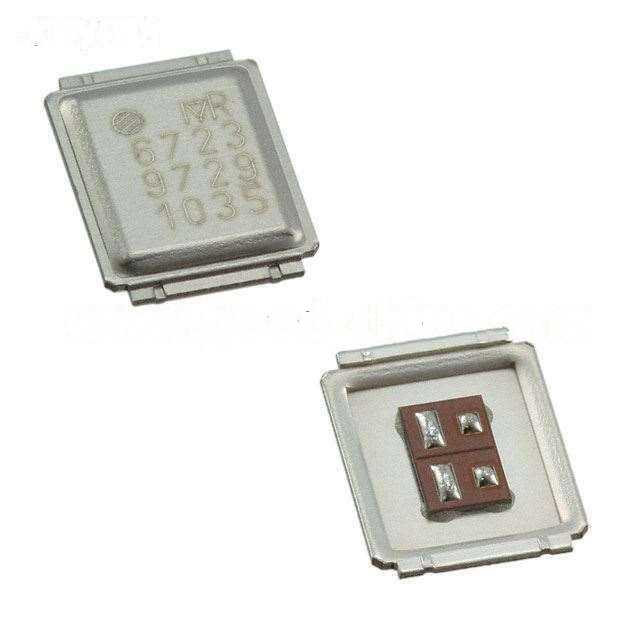

| Manufacturer Part Number: | IRF6723M2DTR1P |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 2N-CH 30V 15A DIRECTFET |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRF6723M2DTR1P Datasheet |
| Internal Part Number | 898-IRF6723M2DTR1P | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) Discrete Power MOSFETs 40V and Below | |
| Design Resources | IRF6723M2DTR1P Saber Model IRF6723M2DTR1P Spice Model | |
| PCN Obsolescence/ EOL | Multiple Devices 20/Dec/2013 | |
| PCN Assembly/Origin | DirectFET Backend Wafer Processing 23/Oct/2013 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| FET Type | 2 N-Channel (Dual) | |
| FET Feature | Logic Level Gate | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 15A | |
| Rds On (Max) @ Id, Vgs | 6.6 mOhm @ 15A, 10V | |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA | |
| Gate Charge (Qg) @ Vgs | 14nC @ 4.5V | |
| Input Capacitance (Ciss) @ Vds | 1380pF @ 15V | |
| Power - Max | 2.7W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | DirectFET™ Isometric MA | |
| Supplier Device Package | DIRECTFET™ MA | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRF6723M2DTR1P | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRF6723M2DTR1P is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRF6723M2DTR1P is new and unused, you can buy IRF6723M2DTR1P Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRF6723M2DTR1P.
