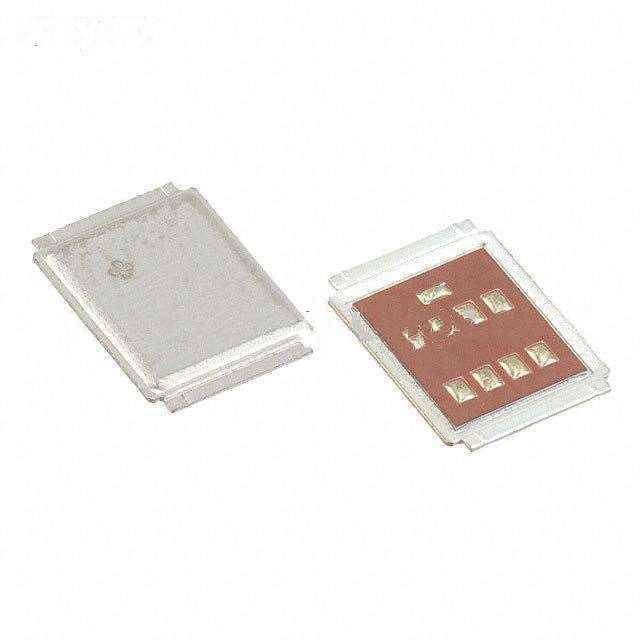

| Manufacturer Part Number: | IRF7769L1TRPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 100V 20A DIRECTFET |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRF7769L1TRPBF Datasheet |
| Internal Part Number | 898-IRF7769L1TRPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Large Can DirectFET® MOSFETs | |
| PCN Assembly/Origin | Backend Wafer Transfer 23/Oct/2013 Die Epoxy Henkel 8064T Update 12/Nov/2014 | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 124A (Tc) | |
| Rds On (Max) @ Id, Vgs | 3.5 mOhm @ 74A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 300nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 11560pF @ 25V | |
| Power - Max | 3.3W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | DirectFET™ Isometric L8 | |
| Supplier Device Package | DIRECTFET L8 | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRF7769L1TRPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRF7769L1TRPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRF7769L1TRPBF is new and unused, you can buy IRF7769L1TRPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRF7769L1TRPBF.
